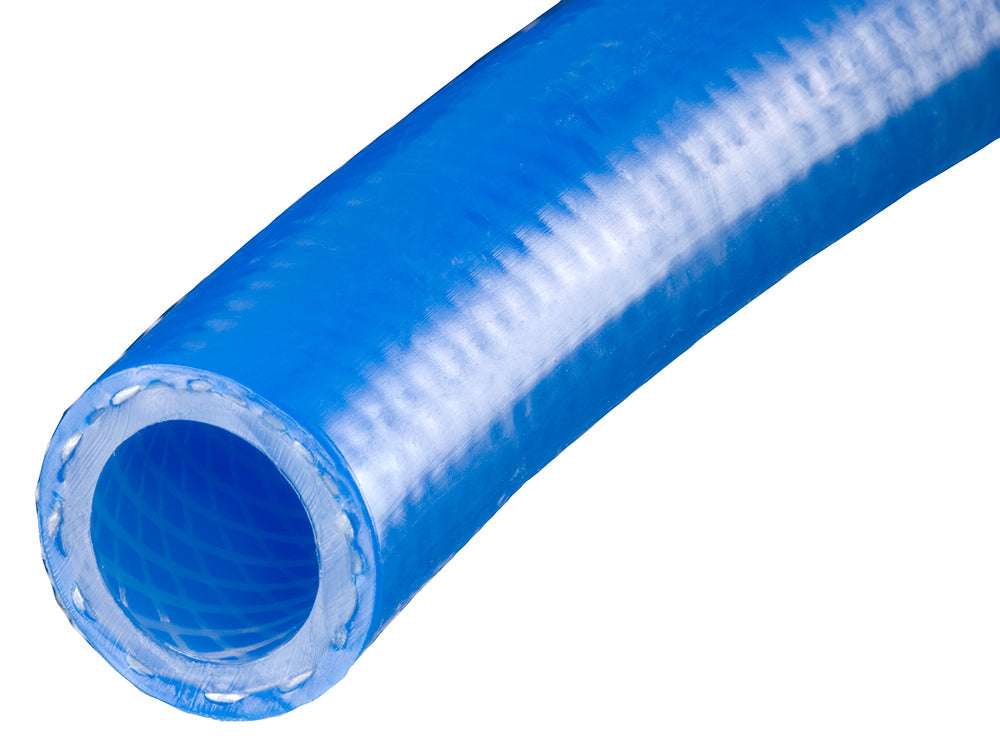

A3236-12X300 Kuri-Tec by Kuriyama | A3236 Series | High Purity Non-Toxic LLDPE Water Hose | Blue | 3/4" ID | 1.125" OD | EVA Copolymer | 300ft Length

A3236-12X300 Kuri-Tec by Kuriyama | A3236 Series | High Purity Non-Toxic LLDPE Water Hose | Blue | 3/4" ID | 1.125" OD | EVA Copolymer | 300ft Length

Sale price$1,311.34

Kuriyama Kuri Tec® Series A3236 High Purity Non-Toxic LLDPE Water Hose A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 300 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,232.66
8–14 $1,180.21
15+ $1,049.07
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • A3236 Series
Color(s):
  • Blue

SPECIFICATIONS

Application: Transfer of food, beverages and water, Transfer of deionized water, Water sampling, Water bottling equipment, Temporary residential water supply lines Water transfer lines for semiconductor manufacturing, where applicable Environmental clean-up applications involving water and chemicals SAE Rating: N/A
Other Ratings: N/A Tube: Special co-extruded tube with the inner contact surface meeting applicable FDA(04), NSF(12) and RoHS(15) requirements.
Reinforcement: High tensile strength yarn Cover: Blue EVA Copolymer . . . complies with FDA(04) and RoHS(15) requirements.
Temperature Range: -10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(04), NSF(12), RoHS(15)
Other Features:
  • Extremely light weight.
  • Good resistance to U. V. and weather aging.
  • Exceptionally low hydrocarbon extraction into water, as compared to the EPA MCL's (maximum contaminant levels) for drinking water.
  • Extremely low hydrocarbon absorption from contaminated water samples.
  • Excellent low temperature flexibility.
  • Excellent chemical resistance.
  • Silicone-free.
  • One-piece lengths.
  • Opaque jacket reduces tendency for algae growth in warm, sunny applications.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A3236-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300 ft. 33 lbs.
A3236-12X300 3/4" 19.1mm 1.125" 28.6mm 200 PSI 100 PSI 300ft 68 lbs.
A3236-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 75 PSI 200 ft 59 lbs.
Note: *For applications requiring minimal stretch, this hose is also available with longitudinal cords by ordering Series A3246, check with factory for minimum quantity requirements. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
