A3236-08X300 Kuri-Tec by Kuriyama | A3236 Series | High Purity LLDPE Water Hose | 1/2" ID | .750" OD | 200 PSI | 300ft Length

A3236-08X300 Kuri-Tec by Kuriyama | A3236 Series | High Purity LLDPE Water Hose | 1/2" ID | .750" OD | 200 PSI | 300ft Length

Sale price$433.16

Kuri Tec® by Kuriyama

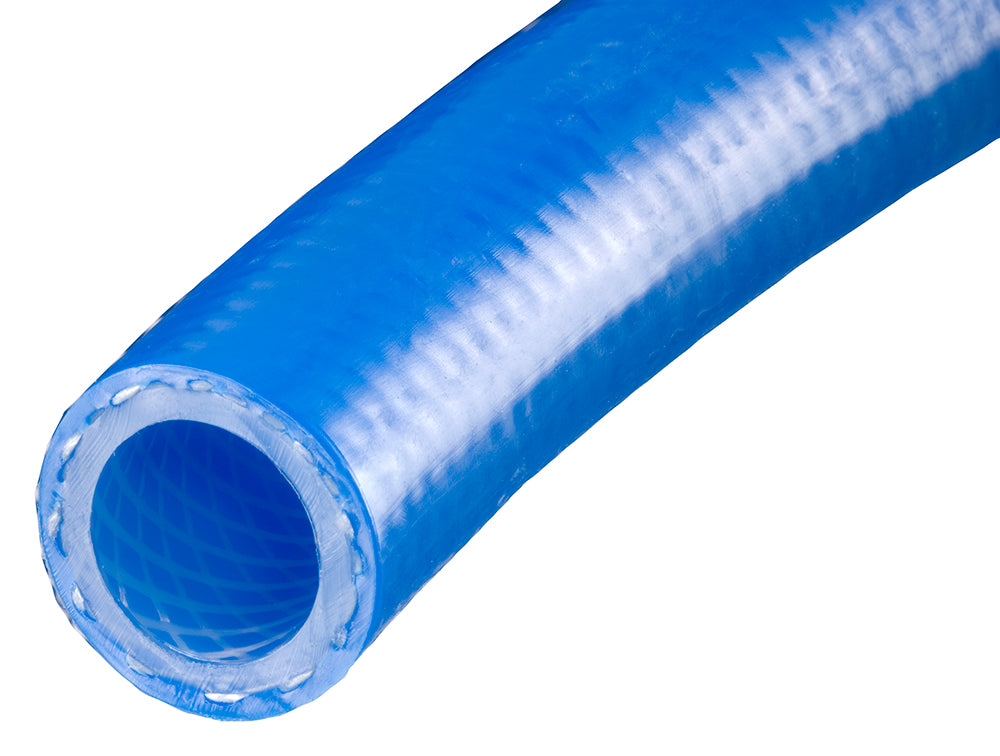

A3236 Series | High Purity LLDPE Water Hose

A flexible, non-contaminating food grade hose that is ideal for use in food, beverage and water applications.

Package Quantity: 300 Foot

Buy More, Save More!
Quantity Price Each
5–14 $407.17
15–29 $368.19
30+ $324.87
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • A3236 Series
Color(s):
  • Blue

SPECIFICATIONS

Applications: Transfer of food, beverages and water.
Transfer of deionized water.
Water sampling.
Water bottling equipment.
Water transfer lines for semiconductor manufacturing, where applicable.
Temporary residential water supply lines.
Environmental clean-up applications involving water and chemicals.
Tube: Special co-extruded tube with the inner contact surface meeting applicable FDA, NSF, and RoHS requirements. Reinforcement: High tensile strength yarn.
Cover: Blue EVA copolymer. Complies with FDA(04) and RoHS requirements. Service Temperature Range: -10°F (-23°C) to +140°F (+60°C)
Specifications: FDA
NSF Certified Under Standard 51.
NSF Certified to NSF/ANSI 61 & 372.
RoHS
Other Features:
  • Extremely light weight.
  • Good resistance to U. V. and weather aging.
  • Exceptionally low hydrocarbon extraction into water, as compared to the EPA MCLfs (maximum contaminant levels) for drinking water.
  • Extremely low hydrocarbon absorption from contaminated water samples.
  • Excellent low temperature flexibility.
  • Excellent chemical resistance.
  • Silicone-free.
  • One-piece lengths.
  • Opaque jacket reduces tendency for algae growth in warm, sunny applications.
  • Phthalate Free.
Part Number
100ft		 Part Number
200ft		 Nominal ID Nominal OD Max. Working
Pressure		 Approx Weight
Per Pkg
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
A3236-08X300 - 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 33 lbs.
A3236-12X300 - 3/4" 19.1mm 1.125" 28.6mm 200 PSI 100 PSI 68 lbs.
- A3236-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 75 PSI 59 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
