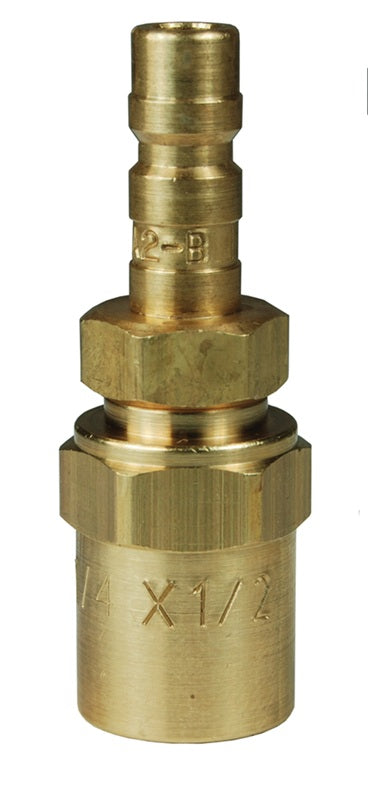

A2E2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | Reusable Hose Barb | 1/2" Hose OD | 1/4" Hose ID x 1/4" Body Size | Compact Plug | Brass
A2E2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | Reusable Hose Barb | 1/2" Hose OD | 1/4" Hose ID x 1/4" Body Size | Compact Plug | Brass

A2E2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | Reusable Hose Barb | 1/2" Hose OD | 1/4" Hose ID x 1/4" Body Size | Compact Plug | Brass

Sale price$18.03

Dixon Valve & Coupling
Pneumatic Coupling: A-Series Compact Plug (Reusable Barb)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
Buy More, Save More!
Quantity Price Each
10–39 $16.95
40–79 $15.33
80+ $13.52
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male A-Series QD Interchange
  • 1/2in Reusable Hose End
Compatibility & Interchange:
  • Proprietary Astronautics
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:
A-Series | Compact Plug (Reusable Barb)
Part Number Coupling Type Body Size Hose ID x OD Material Length Maximum OD Hex Flow at
100 PSI		 Working Pressure and
Burst Pressure
when Connected to:
A2E2 Plug/Male 1/4" 1/4" x 1/2" Steel 1.97"
(50.0mm)		 0.68"
(17.3mm)		 9/16" -
  • Brass Coupler & Steel Plug:
    Max. Working: 1,000 PSI (70 bar)
    Burst: 8,000 PSI (550 bar)
    A2E2-B Plug/Male 1/4" 1/4" x 1/2" Brass 1.97"
    (50.0mm)    		 0.68"
    (17.3mm)    		 9/16" -
    • Brass Coupler & Brass Plug:
      Max. Working: 500 PSI (35 bar)
      Burst: 6,500 PSI (450 bar)
      A-Series | Compact Coupler (Reusable Barb)
      Part
      Number      		 Coupling
      Type      		 Body
      Size      		 Hose ID x OD Material Length Max.
      OD      		 Hex Flow at
      100 PSI      		 Max. Working
      Pressure      		 Burst
      Pressure
      Brass Coupler
      & Brass Plug:      		 Brass Coupler
      & Steel Plug:      		 Brass Coupler
      & Brass Plug:      		 Brass Coupler
      & Steel Plug:
      2AE2-B Socket/Female 1/4" 1/4" x 1/2" Brass 2.62"
      (66.5mm)      		 0.77"
      (19.6mm)      		 11/16" 25 CFM 500 PSI
      (35 bar)      		 1,000 PSI
      (70 bar)      		 6,500 PSI
      (450 bar)      		 8,000 PSI
      (550 bar)
