A27-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 7/16x20 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow
Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.06 |
| 40–79 | $14.53 |
| 80+ | $12.82 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

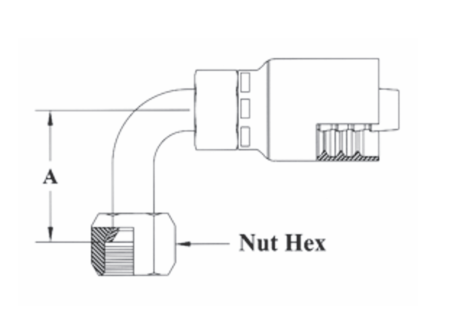

| Part Number | Hose ID | Thread Size | Tube OD | A - Drop Inches | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Aeroquip TTC | Weatherhead Z | ||||||
| A27-4x4 | 1/4" | 7/16x20 | 1/4" | 1.80" | 9/16" | 1AA4FJC4a | 04Z-644 |
| A27-4x6* | 1/4" | 9/16x18 | 3/8" | 1.80" | 11/16" | - | - |
| A27-6x6* | 3/8" | 9/16x18 | 3/8" | 2.18" | 11/16" | 1AA6FJC6 | 06Z-646 |
| A27-6x8 | 3/8" | 3/4x16 | 1/2" | 2.50" | 7/8" | - | 06Z-648 |
| A27-8x8 | 1/2" | 3/4x16 | 1/2" | 2.50" | 7/8" | 1AA8FJC8a | 08Z-648 |
| A27-8x10 | 1/2" | 7/8x14 | 5/8" | 2.75" | 1" | 1AA10FJC8 | 08Z-650 |
| A27-10x10 | 5/8" | 7/8x14 | 5/8" | 2.75" | 1" | - | - |
| A27-12x12* | 3/4" | 1-1/16x12 | 3/4" | 3.73" | 1-1/4" | 1AA12FJC12 | 12Z-652 |
| A27-16x16* | 1" | 1-5/16x12 | 1" | 4.50" | 1-1/2" | 1AA16FJC16 | 16Z-656L |
*JIC Seat and thread only
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
