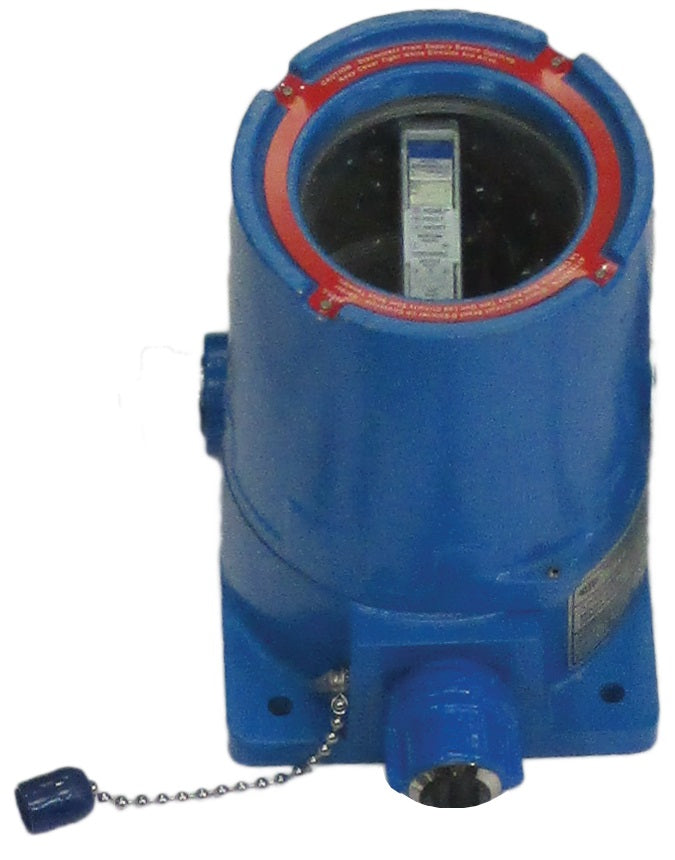

A212-120 by Dixon Valve | A210 Spillguard® System Monitor | Dual Channel Control Monitor | 120V DC

A212-120 by Dixon Valve | A210 Spillguard® System Monitor | Dual Channel Control Monitor | 120V DC

Sale price$2,314.45

Dixon Valve
A210 Spillguard Monitor

Shutdown system for tank cars, tank trucks, barges, and ships, suitable for open and closed dome.
Buy More, Save More!
Quantity Price Each
4–7 $2,175.58
8–14 $2,083.01
15+ $1,851.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • A210 Spillguard
Features:
  • Rugged, explosion proof, weather, chemical, and corrosion resistant.
  • LED status lights are visible through the glass cover.
  • Inserts into the tank through standard 1/2" NPT fitting.
  • The probe can be portable or permanently installed in the vessel.
  • Laser engraved graduated rod with 1/4" graduations.
  • Probe-to-controller cable protected by stainless steel interlocking armor sheath and heavy-duty latching connectors at both ends.
  • Fail-safe design, unit trips in the event of an open or shorted cable or loss of power.
  • Choice of capacitance, conductivity, ultrasonic, temperature, or float sensors.
  • Input power:120 VAC, 240 VAC or 24 VDC, 2.5 watts.
  • Output relay de-energizes on high level, broken or shorted sensor cables or loss of power.
  • Sensor excitation open circuit voltage 8 VDC, short circuit current 8MA with built-in FM-approved barrier.
Construction:
  • Wetted materials: 316 stainless steel and PTFE standard.
  • Controller housing NEMA 4X, NEMA 7, Explosion Proof, Class I, II, Groups B, C, and D.
Specifications:
  • Cable connectors designed for repeated mating meet IP 65mechanical and environmental specifications.
  • FM, CSA HAZ Loc Class I Div I, Groups B, C, and D.
  • Probe temperature range: -14°F to 212°F (-26°C to 100°C).
  • Probe pressure rating: 50 PSI with a standard fitting, consult Dixon®for applications up to 300 PSI.
  • Sensor suitable for Class I, II, III, Div 1, Groups A, B, C and D when used with supplied controller and cable lengths of 10,000' or less.
  • Output relay contacts 2 form C (2PDT) rated 2 amps at 120/240VAC, 1 form C (SPDT) with optional latching circuit and reset switch.
120V DC
Part Number		 Description
A212-120 Dual Channel Control Monitor

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
