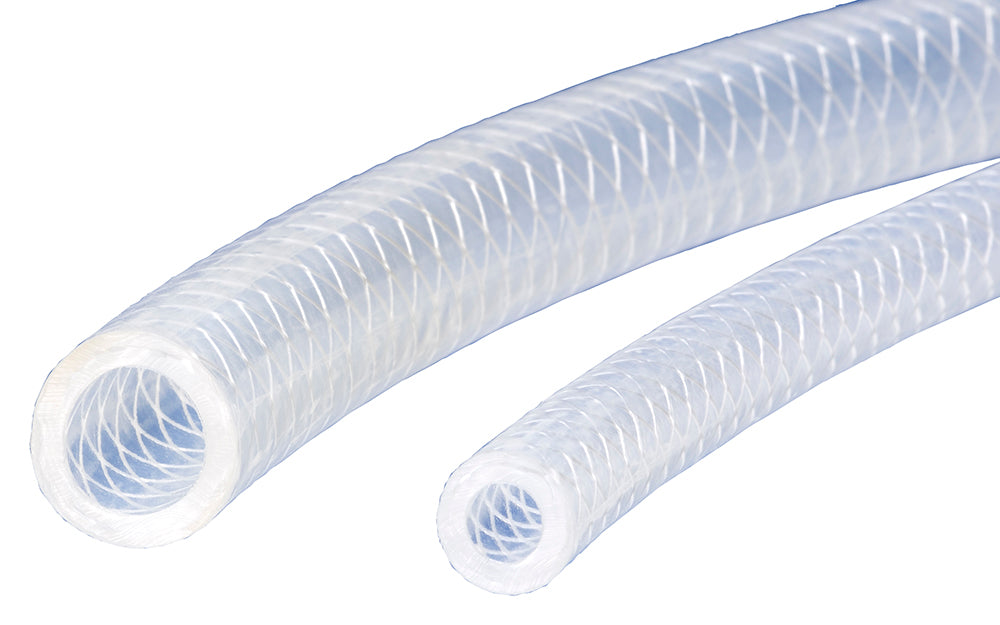

A1730-04X500 Kuri-Tec by Kuriyama | A1730 Series | Flexible FDA Polyethylene Hose | 1/4" ID | .460" OD | 150 PSI | 500ft Length

A1730-04X500 Kuri-Tec by Kuriyama | A1730 Series | Flexible FDA Polyethylene Hose | 1/4" ID | .460" OD | 150 PSI | 500ft Length

Sale price$397.79

Kuri Tec® by Kuriyama
A1730 Series | Flexible FDA Polyethylene Hose

A flexible food grade hose for those applications in which a PVC hose may not be suitable.

Package Quantity: 500 Foot

Buy More, Save More!
Quantity Price Each
5–14 $373.92
15–29 $338.12
30+ $298.34
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • A1730 Series
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Applications: Applications involving radiation or other contaminants that require disposal of the hose after use.
Food transfer.
Tube: 82 Shore "A" polyethylene in compliance with FDA and RoHS requirements. Reinforcement: High tensile strength yarn.
Cover: 68 Shore "A" flexible polyethylene cover in compliance with FDA and RoHS requirements. Service Temperature Range: -60°F (-51°C) to +120°F (+49°C)
Specifications: FDA
RoHS
Other Features:
  • Flexible non-chlorinated non-PVC hose.
  • Can be incinerated without harmful emissions.
  • Light weight.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
A1730-04X100 - A1730-04X500 1/4" 6.5mm 0.460" 11.7mm 150 PSI 75 PSI
A1730-06X100 A1730-06X300 - 3/8" 9.5mm 0.593" 15.1mm 150 PSI 75 PSI
A1730-08X100 A1730-08X300 - 1/2" 12.7mm 0.740" 18.8mm 150 PSI 75 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
