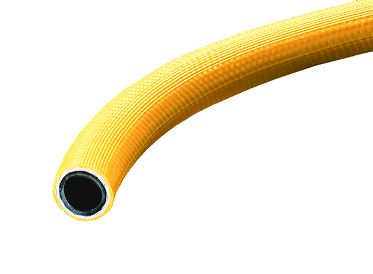

A1661-08X300 Kuri-Tec by Kuriyama | A1661 Series | Blend Reinforced Spray Hose | 1/2" ID | .790" OD | 600 PSI | PVC | Polyurethane | 300ft Length
Kuriyama

A1661-08X300 Kuri-Tec by Kuriyama | A1661 Series | Blend Reinforced Spray Hose | 1/2" ID | .790" OD | 600 PSI | PVC | Polyurethane | 300ft Length

Sale price$778.82

Kuriyama Kuri Tec® A1661 Series 600 PSI PVC/Polyurethane Blend Reinforced Spray Hose - Yellow Unique PVC/polyurethane blended core provides excellent resistance to hydrocarbon-based lawn care and pest control chemicals. Reinforced with high tensile strength yarn. PVC ribbed cover provides abrasion resistance.

Package Quantity: 300 FT

Product Data:

Brand:
  • Kuri Tec
Series:
  • A1661 Series
Color(s):
  • Yellow

SPECIFICATIONS

Application: Pest control spraying, Agricultural spraying, Commercial weed spraying SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC/polyurethane blend.
Reinforcement: High tensile strength yarn two-pass spiral construction. Cover: Ribbed PVC
Temperature Range: +15 deg. F (-10 deg. C) to +160 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Extremely tough and kink resistant.
  • PVC/polyurethane blended core - provides better chemical resistance than comparable all-PVC hoses.
  • Ribbed cover provides excellent abrasion-resistance.
  • 600 PSI working pressure.
  • Pin-pricked cover vents vapor - helps prevent ballooning.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A1661-06X300 3/8" 9.5mm .650" 16.5mm 600 PSI 350 PSI 300 ft 41 lbs.
A1661-06X400 3/8" 9.5mm .650" 16.5mm 600 PSI 350 PSI 400 ft 54 lbs.
A1661-08X300 1/2" 12.7mm .790" 20.1mm 600 PSI 350 PSI 300 ft 57 lbs.
A1661-08X400 1/2" 12.7mm .790" 20.1mm 600 PSI 350 PSI 400 ft 76 lbs.
A1661-10X300 5/8" 15.9mm 1.030" 26.2mm 600 PSI 300 PSI 300 ft 96 lbs.
A1661-12X300 3/4" 19.1mm 1.170" 29.7mm 600 PSI 300 PSI 300 ft 126 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
