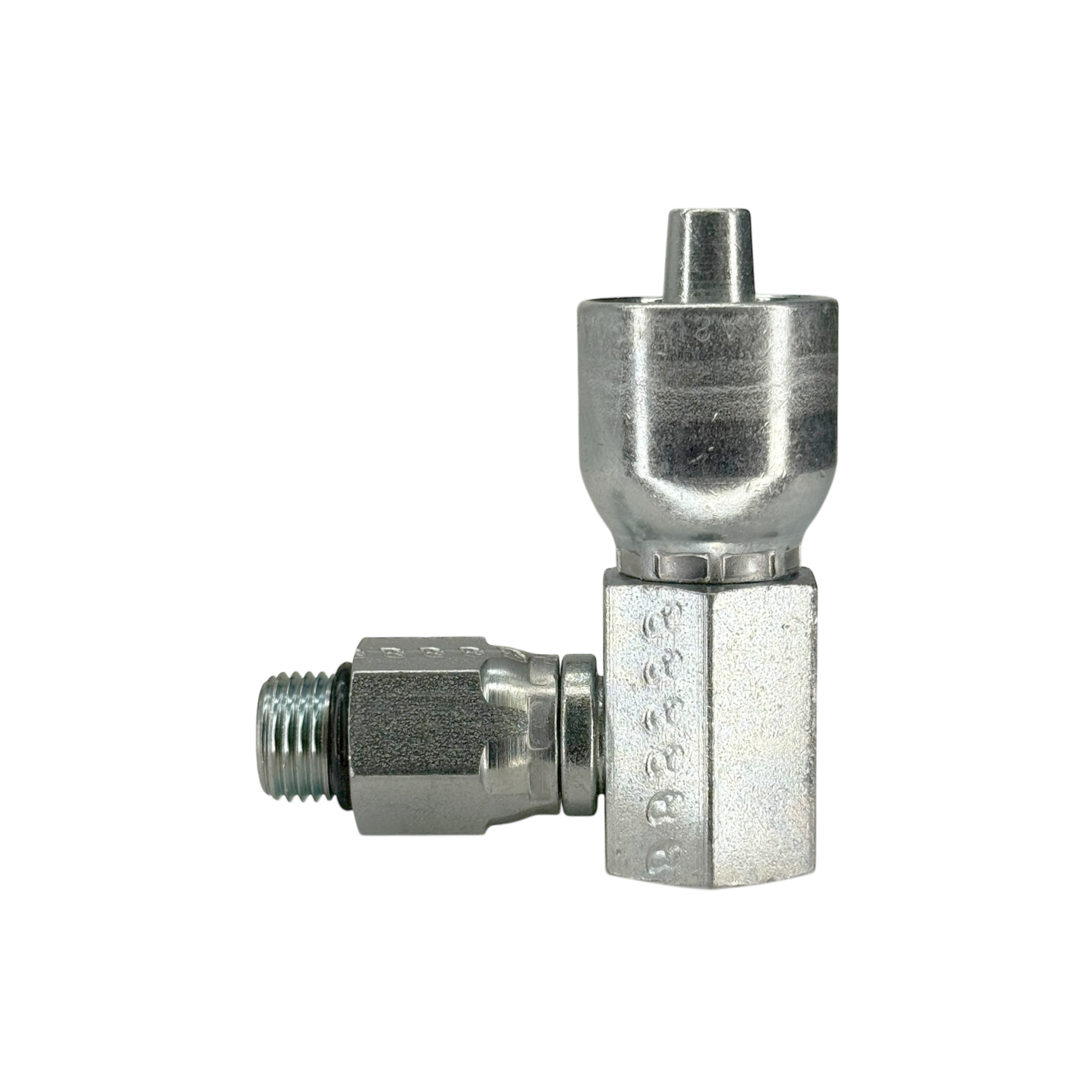

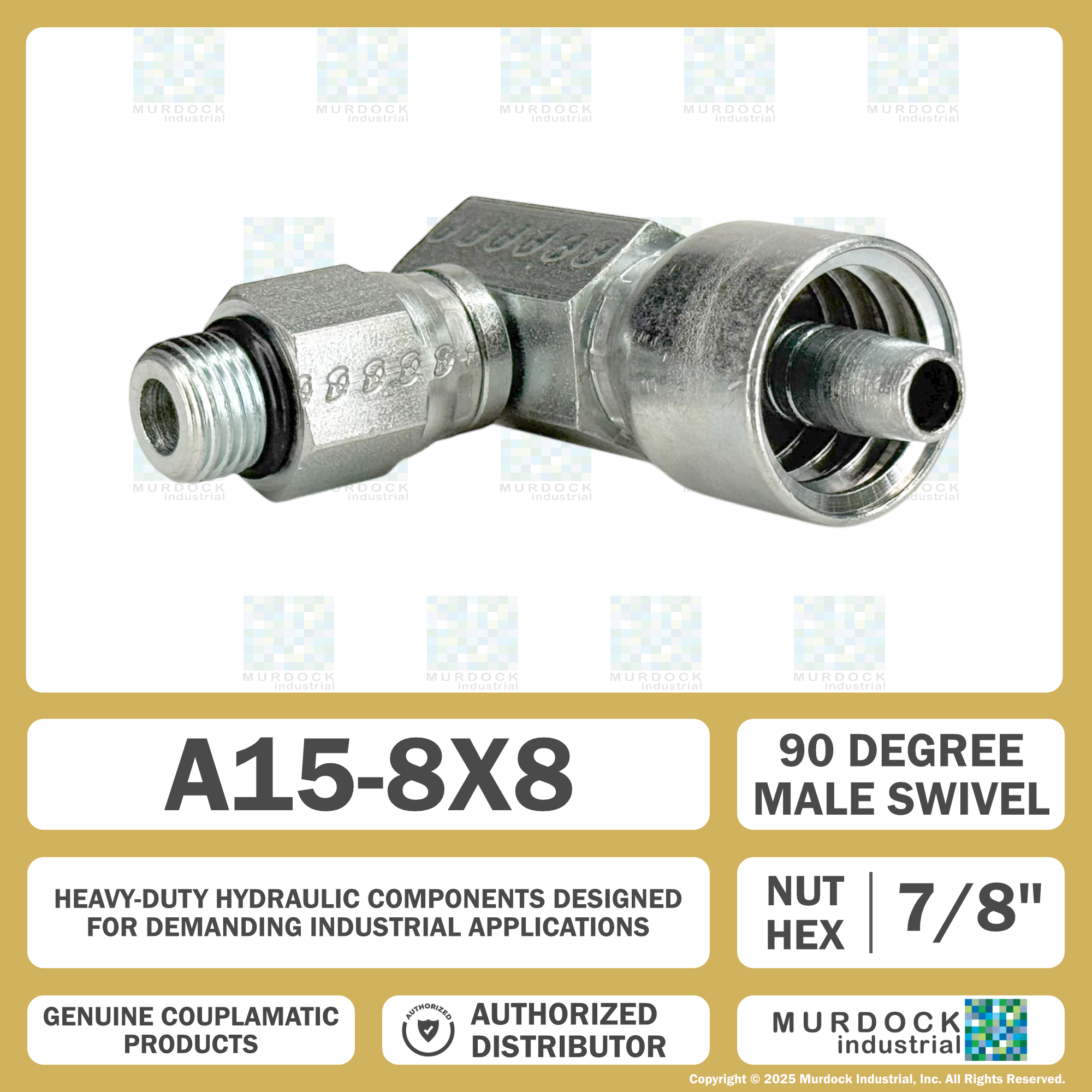

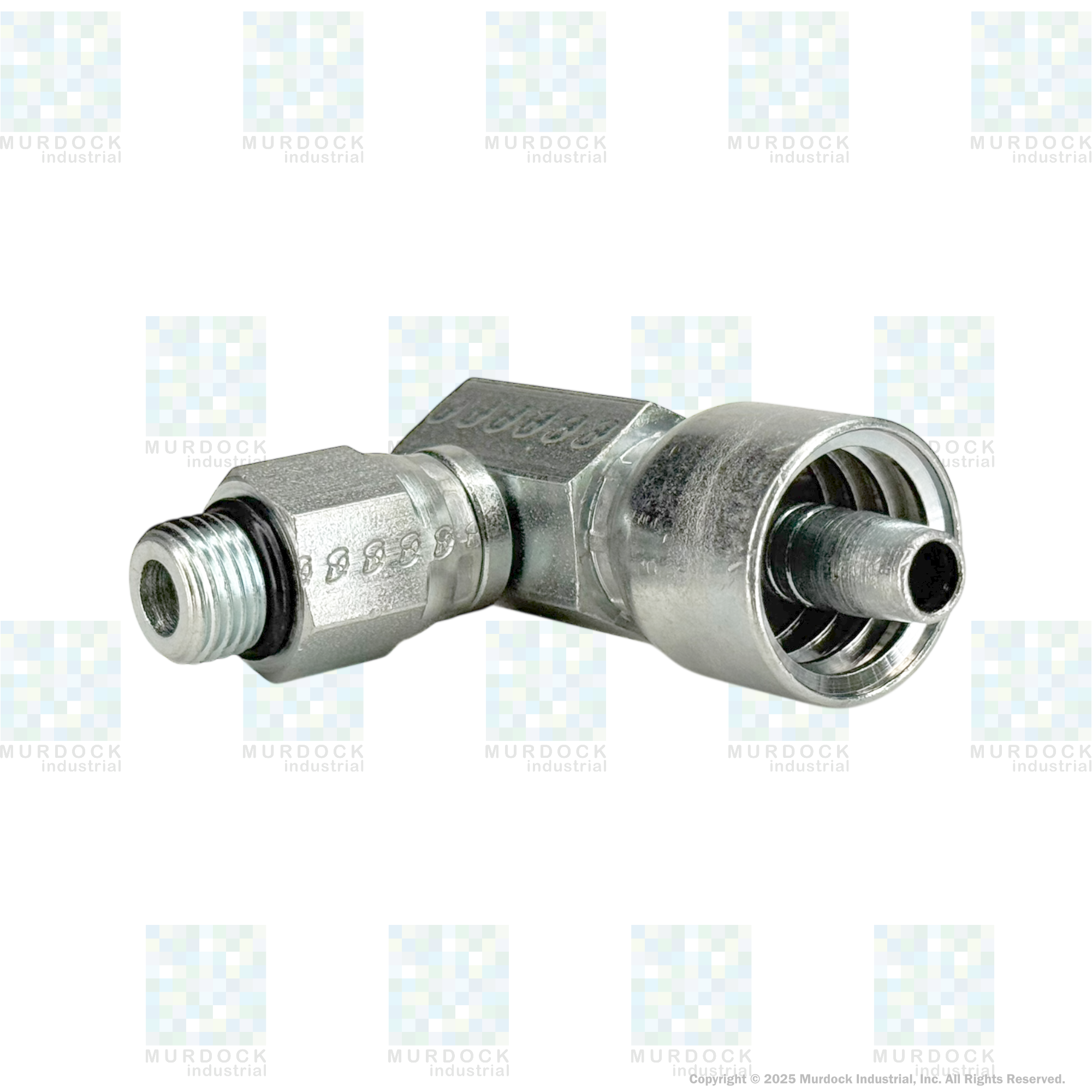

A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow
A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow

A15-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Swivel | 90° Elbow

Sale price$24.64

Couplamatic Systems Inc.
A Series - ORB - Male Swivel 90°
Buy More, Save More!
Quantity Price Each
10–39 $23.16
40–79 $20.94
80+ $18.48
Discounts applied in cart/checkout.

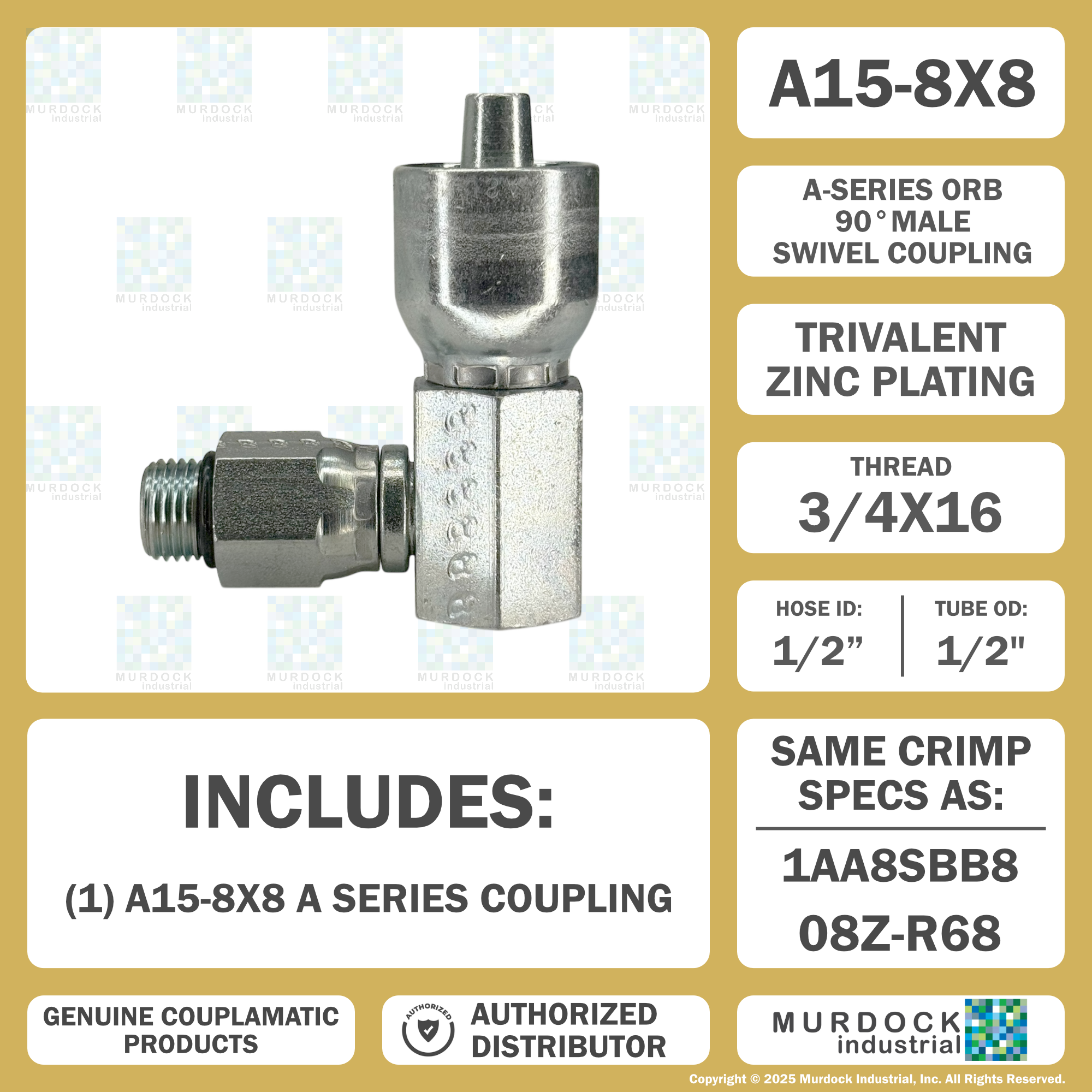

Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Male O-Ring Boss
  • 1/2in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A15-6x6 3/8" 9/16x18 3/8" 3/4" 1AA6SBB6 06Z-R66
A15-6x8 3/8" 3/4x16 1/2" 7/8" 1AA8SBB6 06Z-R68
A15-8x8 1/2" 3/4x16 1/2" 7/8" 1AA8SBB8 08Z-R68
A15-8x10 1/2" 7/8x14 5/8" 1" 1AA10SBB8 08Z-R70

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
