A14-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 1/2-14 Thread Male Swivel NPTF | 90° Elbow

A14-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 1/2-14 Thread Male Swivel NPTF | 90° Elbow

Sale price$20.06
Buy more, save moreDiscounts applied in cart/checkout.
A Series — Bite to the Wire

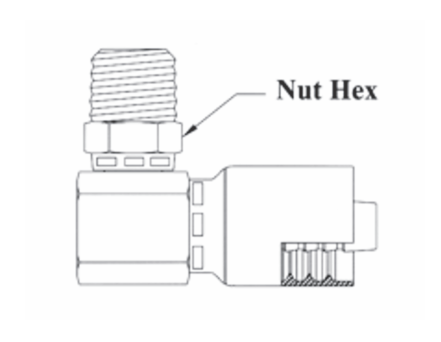

A14 A Series — NPTF, Male Swivel, 90° Elbow

A14 is the NPTF, Male Swivel, 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A14-4x4 1/4" 1/4" 1/4-18 5/8" 1AA4PSB4 04Z-MO4
A14-6x6 3/8" 3/8" 3/8-18 3/4" 1AA6PSB6 06Z-M06
A14-6x8 3/8" 1/2" 1/2-14 7/8" — —
A14-8x8 1/2" 1/2" 1/2-14 7/8" 1AA8PSB8 08Z-M08
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. - Swivel for installation purposes only. Leakage may occur at low pressure.

Additional Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Male NPTF
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
