A1307-10X300 Kuri-Tec by Kuriyama | A1307 Series | Standard Duty Reinforced Water Hose | 5/8" ID | .817" OD | PVC | 300ft Length
Kuriyama

A1307-10X300 Kuri-Tec by Kuriyama | A1307 Series | Standard Duty Reinforced Water Hose | 5/8" ID | .817" OD | PVC | 300ft Length

Sale price$399.14

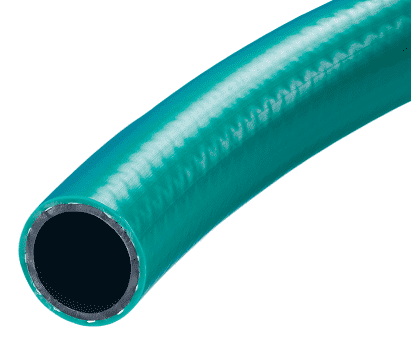

Kuriyama Kuri Tec® Series A1307 Standard Duty Reinforced PVC Water Hose An all-purpose PVC hose for light duty industrial watering applications.

Package Quantity: 300 FT

Product Data:

Brand:
  • Kuri Tec
Series:
  • A1307 Series
Color(s):
  • Green

SPECIFICATIONS

Application: Light duty industrial watering, Lawn and garden watering, Nursery water supply lines, Light duty commercial washdown. SAE Rating: N/A
Other Ratings: N/A Tube: Smooth black PVC compound
Reinforcement: High tensile strength yarn Cover: Smooth opaque green PVC compound
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical.
  • Lightweight and easy to handle.
  • Good resistance to weather aging, ozone and ultraviolet light.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
A1307-08X300 1/2" 12.7mm .692" 17.6mm 125 PSI 50 PSI 300 ft. 34 lbs.
A1307-10X300 5/8" 15.9mm .817" 20.8mm 125 PSI 50 PSI 300 ft. 40 lbs.
A1307-12X300 3/4" 19.1mm .972" 24.7mm 100 PSI 40 PSI 300 ft. 53 lbs.
A1307-16X200 1" N/A N/A N/A N/A N/A 200 ft. N/A
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
