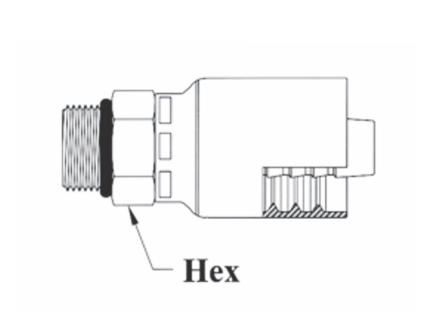

A11-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread ORB Male Solid | Straight
Couplamatic Systems Inc.
A Series - ORB - Male Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $9.99 |
| 40–79 | $9.04 |
| 80+ | $7.97 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Aeroquip TTC | Weatherhead Z | |||||
| A11-4x4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 1AA4MB4 | 04Z-P04 |
| A11-4x5 | 1/4" | 1/2x20 | 5/16" | 5/8" | - | 04Z-P05 |
| A11-4x6 | 1/4" | 9/16x18 | 3/8" | 11/16" | 1AA6MB4 | 04Z-P06 |
| A11-6x6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 1AA6MB6 | 06Z-P06 |
| A11-6x8 | 3/8" | 3/4x16 | 1/2" | 7/8" | 1AA8MB6 | 06Z-P08 |
| A11-8x8 | 1/2" | 3/4x16 | 1/2" | 7/8" | 1AA8MB8 | 08Z-P08 |
| A11-8x10 | 1/2" | 7/8x14 | 5/8" | 1" | 1AA10MB8 | 08Z-P10 |
| A11-8x12 | 1/2" | 1-1/16x12 | 3/4" | 1-1/4" | 1AA12MB8 | 08Z-P12 |
| A11-10x12 | 5/8" | 1-1/16x12 | 3/4" | 1-1/4" | - | 10Z-P12 |
| A11-12x12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/4" | 1AA12MB12 | 12Z-P12 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
