A07-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Female Swivel | Straight | Trivalent Zinc Plating

A07-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Female Swivel | Straight | Trivalent Zinc Plating

Sale price$8.85

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - SAE 45° - Female Swivel

In stock
Buy More, Save More!
Quantity Price Each
10–39 $8.32
40–79 $7.52
80+ $6.64
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 3/8in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

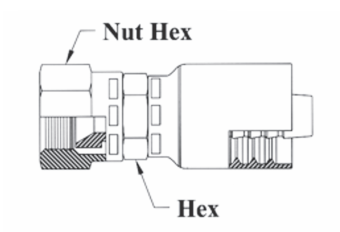

Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A07-6x6 3/8" 5/8x18 3/8" 3/4" 13/16" 1AA6FS6 06Z-406

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
