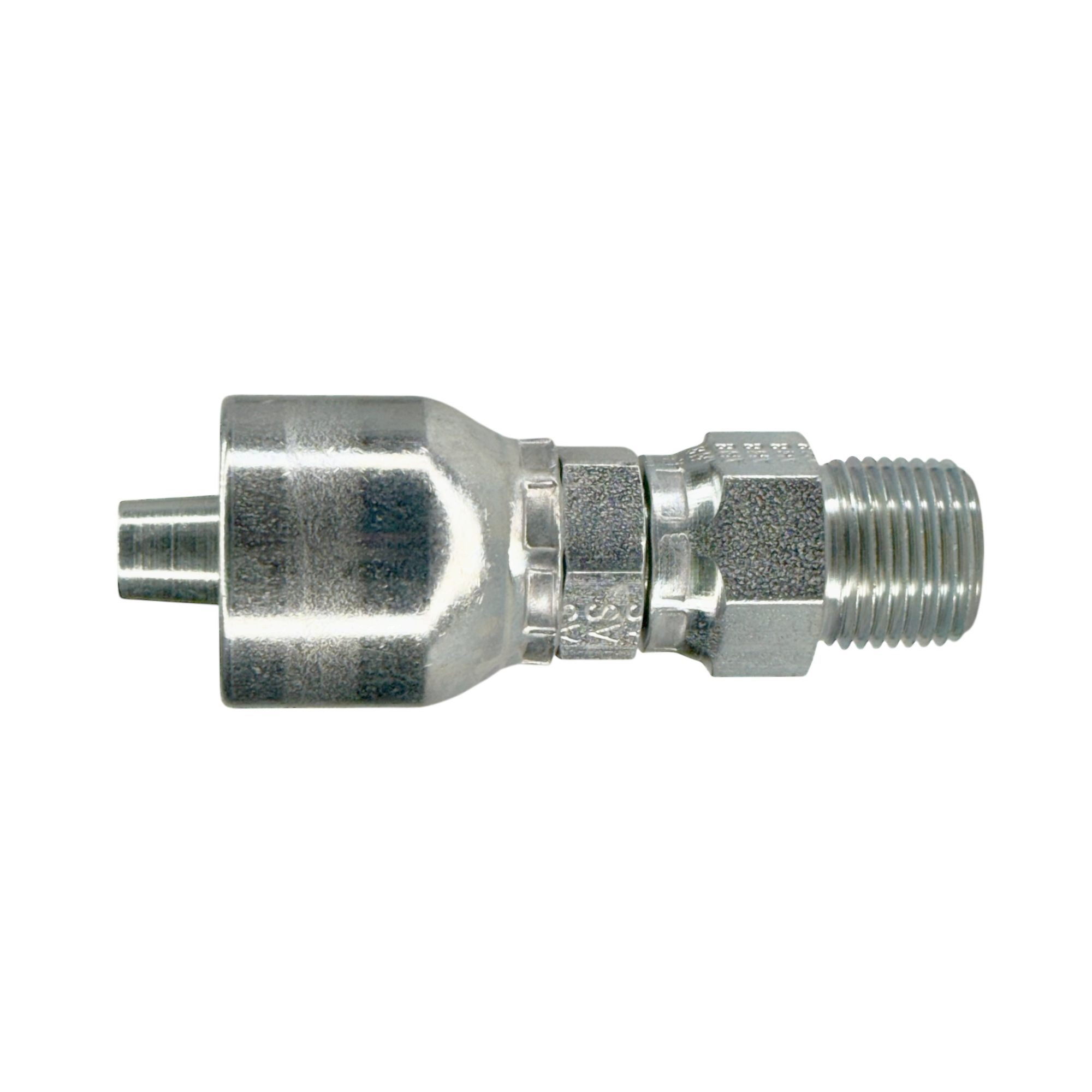

A04-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 1/4-18 Thread Male Swivel NPTF | Straight
Minimum Order Quantity: 5 Fittings
Couplamatic Systems Inc.
A Series - NPTF - Male Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $6.11 |
| 30–59 | $5.53 |
| 60+ | $4.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Pipe Size | Thread Size | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Aeroquip TTC | Weatherhead Z | |||||
| A04-4x2 | 1/4" | 1/8" | 1/8-27 | 5/8" | - | 04Z-J02 |
| A04-4x4 | 1/4" | 1/4" | 1/4-18 | 5/8" | 1AA4PS4 | 04Z-J04 |
| A04-4x6 | 1/4" | 3/8" | 3/8-18 | 3/4" | 1AA4PS6 | - |
| A04-6x4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 1AA4PS6 | 06Z-J04 |
| A04-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 1AA6PS6 | 06Z-J06 |
| A04-6x8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 1AA8PS6 | 06Z-J08 |
| A04-8x6 | 1/2" | 3/8" | 3/8-18 | 3/4" | - | 08Z-J06 |
| A04-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 1AA8PS8 | 08Z-J08 |
| A04-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/4" | 1AA12PS12 | 12Z-J12 |
| A04-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 1AA16PS16 | 16Z-J16 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
-Swivel for installation purposes only. Leakage may occur at low pressure.
