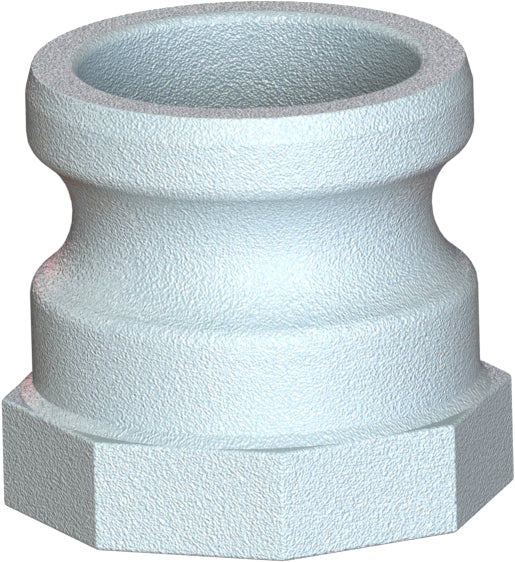

A-DI-300 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type A | 3" Male Adapter x 3" Female NPT Thread | Ductile Iron

A-DI-300 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type A | 3" Male Adapter x 3" Female NPT Thread | Ductile Iron

Sale price$39.02

by Campbell
Standard Cobra Cam & Groove Couplings:Ductile Iron Part A
Buy More, Save More!
Quantity Price Each
10–39 $36.68
40–79 $33.17
80+ $29.27
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 3in Female Cam & Groove
  • 3in Female NPT
STANDARD COBRA:
  • Standard COBRA Cam & Groove Couplings cover a range of diameters from 3/4” thru 8”. These couplings are used at relatively low pressures (see Coupling Selection Guide) in a range of applications including both suction and discharge. The recommended hose attachment for these products can be either Strapbinder Band Clamps by Campbell or Crimpnology™ Crimp Sleeves.
Part Number NPT
A-DI-150 1-1/2"
A-DI-200 2"
A-DI-300 3"
A-DI-400 4"
A-DI-500 5"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
