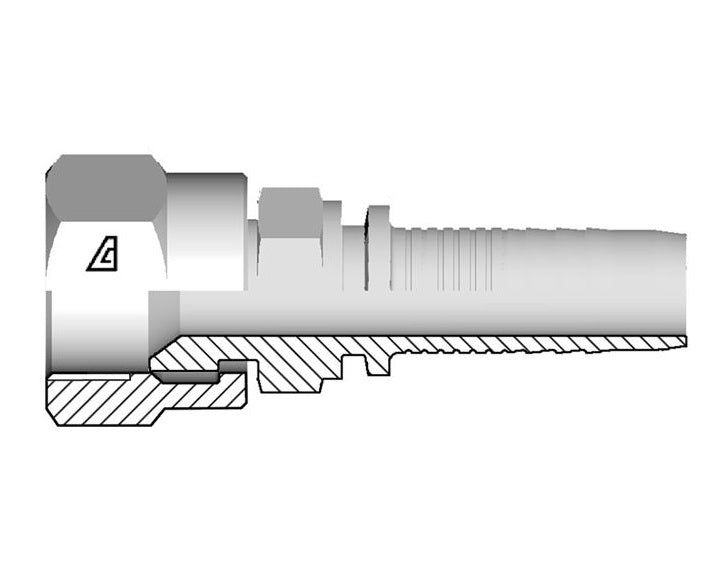

A-2932-FJDH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -29 Hose ID x -32 Female JIC 37° | Steel

A-2932-FJDH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -29 Hose ID x -32 Female JIC 37° | Steel

Sale price$197.68

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | Hose Barb x Female JIC 37° Seat
Buy More, Save More!
Quantity Price Each
5–19 $185.82
20–59 $168.03
60+ $148.26
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0304-FJDH - 03 3/16" 4.8mm 04 7/16-20 18.1mm 12mm 16mm 0.05 lbs
A-0404-FJDH A-0404-FJDH-SS 04 1/4" 6.4mm 04 7/16-20 19.6mm 14mm 16mm 0.06 lbs
A-0405-FJDH - 04 1/4" 6.4mm 05 1/2-20 20.3mm 14mm 17mm 0.07 lbs
A-0406-FJDH - 04 1/4" 6.4mm 06 9/16-18 20.3mm 14mm 19mm 0.09 lbs
A-0506-FJDH - 05 5/16" 7.9mm 06 9/16-18 20.3mm 14mm 19mm 0.08 lbs
A-0604-FJDH - 06 3/8" 9.5mm 04 7/16-20 20.6mm 17mm 16mm 0.08 lbs
A-0605-FJDH - 06 3/8" 9.5mm 05 1/2-20 21.3mm 16mm 17mm 0.90 lbs
A-0606-FJDH A-0606-FJDH-SS 06 3/8" 9.5mm 06 9/16-18 21.3mm 17mm 19mm 0.10 lbs
A-0608-FJDH - 06 3/8" 9.5mm 08 3/4-16 24.8mm 19mm 25mm 0.17 lbs
A-0610-FJDH - 06 3/8" 9.5mm 10 7/8-14 25.8mm 22mm 27mm 0.20 lbs
A-0806-FJDH - 08 1/2" 12.7mm 06 9/16-18 23.1mm 19mm 19mm 0.15 lbs
A-0808-FJDH A-0808-FJDH-SS 08 1/2" 12.7mm 08 3/4-16 25.6mm 19mm 25mm 0.20 lbs
A-0810-FJDH - 08 1/2" 12.7mm 10 7/8-14 26.6mm 22mm 27mm 0.22 lbs
A-0812-FJDH - 08 1/2" 12.7mm 12 1-1/16-12 28.1mm 25mm 32mm 0.30 lbs
A-1008-FJDH - 10 5/8" 15.9mm 08 3/4-16 26.6mm 24mm 25mm 0.30 lbs
A-1010-FJDH A-1010-FJDH-SS 10 5/8" 15.9mm 10 7/8-14 27.6mm 24mm 27mm 0.27 lbs
A-1012-FJDH - 10 5/8" 15.9mm 12 1-1/16-12 28.1mm 25mm 32mm 0.32 lbs
A-1210-FJDH - 12 3/4" 19.0mm 10 7/8-14 28.1mm 27mm 32mm 0.31 lbs
A-1212-FJDH A-1212-FJDH-SS 12 3/4" 19.0mm 12 1-1/16-12 28.6mm 27mm 32mm 0.35 lbs
A-1214-FJDH - 12 3/4" 19.0mm 14 1-3/16-12 29.9mm 32mm 36mm 0.44 lbs
A-1216-FJDH - 12 3/4" 19.0mm 16 1-5/16-12 32.1mm 32mm 38mm 0.49 lbs
A-1416-FJDH - 14 7/8" 22.2mm 16 1-5/16-12 32.1mm 32mm 38mm 0.46 lbs
A-1612-FJDH - 16 1" 25.4mm 12 1-1/16-12 31.4mm 32mm 32mm 0.55 lbs
A-1616-FJDH A-1616-FJDH-SS 16 1" 25.4mm 16 1-5/16-12 32.9mm 32mm 38mm 0.62 lbs
A-1820-FJDH - 18 1-1/8" 29.0mm 20 1-5/8-12 37.5mm 41mm 50mm 0.63 lbs
A-2020-FJDH A-2020-FJDH-SS 20 1-1/4" 31.8mm 20 1-5/8-12 39.1mm 41mm 50mm 0.77 lbs
A-2224-FJDH - 22 1-3/8" 35.0mm 24 1-7/8-12 43.4mm 50mm 55mm 0.79 lbs
A-2424-FJDH A-2424-FJDH-SS 24 1-1/2" 38.1mm 24 1-7/8-12 43.4mm 50mm 55mm 1.98 lbs
A-2932-FJDH - 29 1-13/16" 46.0mm 32 2-1/2-12 49.0mm 65mm 70mm 2.31 lbs
A-3232-FJDH A-3232-FJDH-SS 32 2" 50.8mm 32 2-1/2-12 49.0mm 65mm 70mm 3.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
