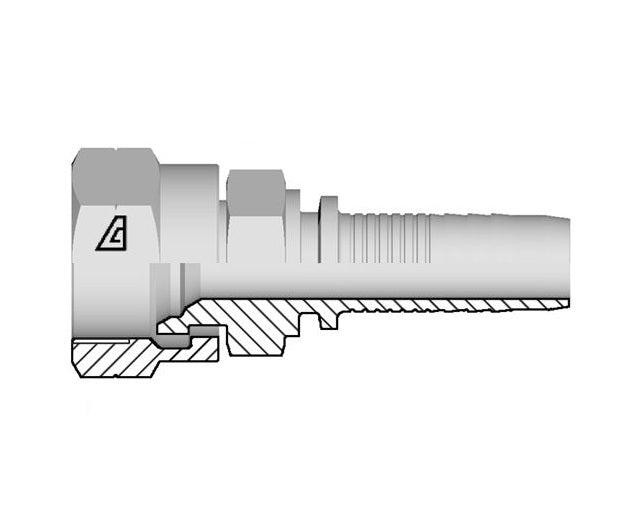

A-2442-FKOS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -24 Hose ID x M42 Female Komatsu | Steel

A-2442-FKOS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -24 Hose ID x M42 Female Komatsu | Steel

Sale price$66.87

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female Komatsu
Buy More, Save More!
Quantity Price Each
10–39 $62.86
40–79 $56.84
80+ $50.15
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Size C
Cut-Off Factor		 Hex Dia.
CH1		 Hex Dia.
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-0414-FKOS 04 1/4" 6.4mm M14x1.5 20.7mm 17mm 19mm 0.09 lbs
A-0618-FKOS 06 3/8" 9.5mm M18x1.5 22.8mm 19mm 22mm 0.13 lbs
A-0822-FKOS 08 1/2" 12.7mm M22x1.5 24.6mm 22mm 27mm 0.20 lbs
A-1024-FKOS 10 5/8" 15.9mm M24x1.5 29.2mm 30mm 32mm 0.40 lbs
A-1230-FKOS 12 3/4" 19.0mm M30x1.5 27.5mm 30mm 36mm 0.44 lbs
A-1633-FKOS 16 1" 25.4mm M33x1.5 35.7mm 36mm 41mm 0.77 lbs
A-2036-FKOS 20 1-1/4" 31.8mm M36x1.5 43.5mm 46mm 46mm 1.29 lbs
A-2442-FKOS 24 1-1/2" 38.1mm M42x1.5 44.0mm 55mm 55mm 1.93 lbs
