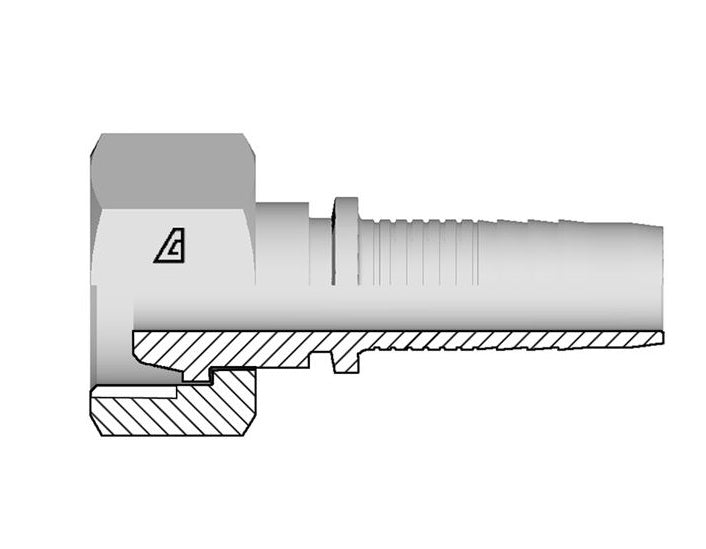

A-1638-FM6S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3863 | -16 Hose ID x M38 Female Metric Swivel 60° Cone | Steel

A-1638-FM6S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3863 | -16 Hose ID x M38 Female Metric Swivel 60° Cone | Steel

Sale price$48.54

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3863 | Hose Barb x Female Metric Swivel 60° Cone
Buy More, Save More!
Quantity Price Each
10–39 $45.63
40–79 $41.26
80+ $36.41
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Tube OD C
Cut-Off Factor		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-1230-FM6S 12 3/4" 19.0mm M30x1.5 22.2mm 36mm 0.31 lbs
A-1638-FM6S 16 1" 25.4mm M38x1.5 28.0mm 46mm 0.49 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
