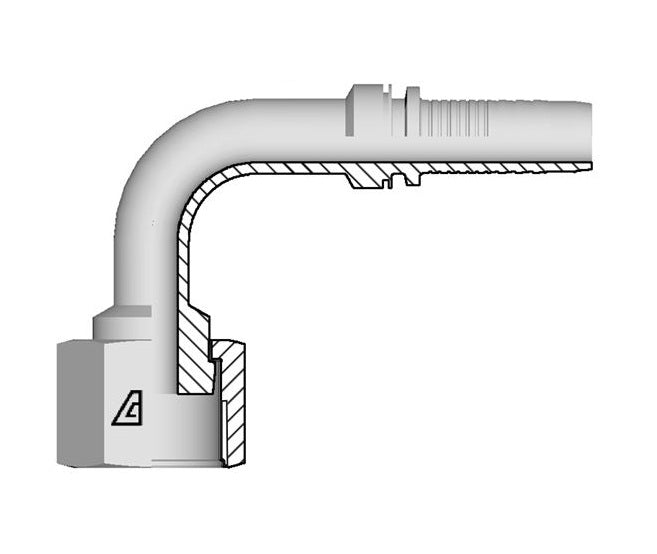

A-1616-FO9M Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

A-1616-FO9M Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

Sale price$43.15

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | Hose Barb x Female O-Ring Face Seal Swivel
Buy More, Save More!
Quantity Price Each
10–39 $40.56
40–79 $36.68
80+ $32.36
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

90 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FO9M 04 1/4" 6.4mm 04 9/16-18 29.8mm 32mm 17mm 0.10 lbs
A-0406-FO9M 04 1/4" 6.4mm 06 11/16-16 37.3mm 38mm 22mm 0.15 lbs
A-0506-FO9M 05 5/16" 7.9mm 06 11/16-16 40.7mm 34mm 22mm 0.18 lbs
A-0606-FO9M 06 3/8" 9.5mm 06 11/16-16 41.8mm 38mm 22mm 0.16 lbs
A-0608-FO9M 06 3/8" 9.5mm 08 13/16-16 43.8mm 41mm 24mm 0.22 lbs
A-0808-FO9M 08 1/2" 12.7mm 08 13/16-16 34.8mm 42mm 24mm 0.25 lbs
A-0810-FO9M 08 1/2" 12.7mm 10 1-14 48.3mm 47mm 30mm 0.36 lbs
A-1010-FO9M 10 5/8" 15.9mm 10 1-14 55.4mm 44mm 30mm 0.42 lbs
A-1212-FO9M 12 3/4" 19.0mm 12 1-3/16-12 61.6mm 58mm 36mm 0.69 lbs
A-1216-FO9M 12 3/4" 19.0mm 16 1-7/16-12 65.6mm 71mm 41mm 0.88 lbs
A-1616-FO9M 16 1" 25.4mm 16 1-7/16-12 82.6mm 66mm 41mm 1.08 lbs
A-2020-FO9M 20 1-1/4" 31.8mm 20 1-11/16-12 97.0mm 78mm 50mm 1.64 lbs
A-2424-FO9M 24 1-1/2" 38.1mm 24 2-12 107.8mm 87mm 60mm 2.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
