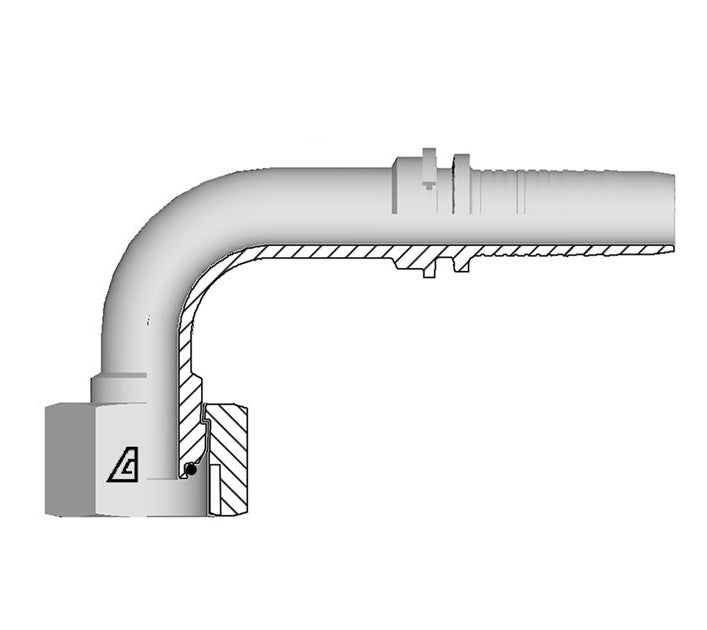

A-1012-FBO9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | -10 Hose ID x -12 Female BSPP O-Ring Swivel 60° Cone | Steel

A-1012-FBO9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | -10 Hose ID x -12 Female BSPP O-Ring Swivel 60° Cone | Steel

Sale price$18.71

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Hose Barb x Female BSP O-Ring Swivel 60° Cone
Buy More, Save More!
Quantity Price Each
10–39 $17.59
40–79 $15.90
80+ $14.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

45 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0302-FBP9 03 3/16" 4.8mm 02 1/8-28 25.0mm 29.0mm 14mm 0.06 lbs
A-0402-FBP9 04 1/4" 6.4mm 02 1/8-28 27.0mm 30.0mm 14mm 0.08 lbs
A-0404-FBO9 04 1/4" 6.4mm 04 1/4-19 29.3mm 29.0mm 19mm 0.10 lbs
A-0406-FBO9 04 1/4" 6.4mm 06 3/8-19 28.0mm 30.5mm 22mm 0.13 lbs
A-0506-FBO9 05 5/16" 7.9mm 06 3/8-19 34.0mm 35.5mm 22mm 0.15 lbs
A-0606-FBO9 06 3/8" 9.5mm 06 3/8-19 39.5mm 42.0mm 22mm 0.15 lbs
A-0608-FBO9 06 3/8" 9.5mm 08 1/2-14 33.0mm 36.0mm 27mm 0.21 lbs
A-0808-FBO9 08 1/2" 12.7mm 08 1/2-14 40.0mm 41.0mm 27mm 0.24 lbs
A-0810-FBO9 08 1/2" 12.7mm 10 5/8-14 42.5mm 43.0mm 27mm 0.24 lbs
A-0812-FBO9 08 1/2" 12.7mm 12 3/4-14 42.5mm 43.0mm 32mm 0.28 lbs
A-1010-FBO9 10 5/8" 15.9mm 10 5/8-14 50.2mm 47.0mm 27mm 0.33 lbs
A-1012-FBO9 10 5/8" 15.9mm 12 3/4-14 48.0mm 46.0mm 32mm 0.42 lbs
A-1212-FBO9 12 3/4" 19.0mm 12 3/4-14 53.5mm 53.0mm 32mm 0.49 lbs
A-1216-FBO9 12 3/4" 19.0mm 16 1-11 54.0mm 50.0mm 38mm 0.66 lbs
A-1616-FBO9 16 1" 25.4mm 16 1-11 73.4mm 69.0mm 38mm 0.92 lbs
A-1620-FBO9 16 1" 25.4mm 20 1-1/4-11 78.5mm 88.5mm 50mm 1.55 lbs
A-2020-FBO9 20 1-1/4" 31.8mm 20 1-1/4-11 83.0mm 83.0mm 50mm 1.72 lbs
A-2024-FBO9 20 1-1/4" 31.8mm 24 1-1/2-11 101.5mm 83.0mm 55mm 2.21 lbs
A-2424-FBO9 24 1-1/2" 38.1mm 24 1-1/2-11 96.0mm 96.0mm 55mm 2.98 lbs
A-2432-FBO9 24 1-1/2" 38.1mm 32 2-11 114.0mm 110.0mm 70mm 2.82 lbs
A-3232-FBO9 32 2" 50.8mm 32 2-11 138.0mm 136.0mm 70mm 4.41 lbs
