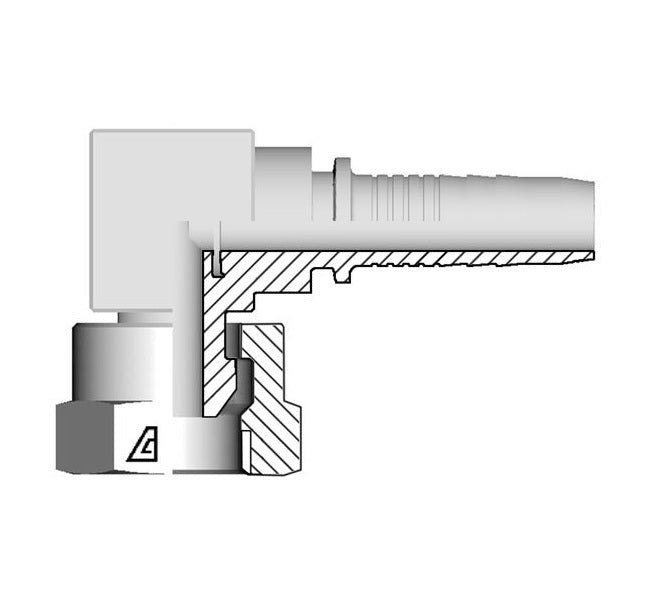

A-0808-FBC9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -08 Hose ID x -08 Female BSPP 60° Cone | Steel

A-0808-FBC9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -08 Hose ID x -08 Female BSPP 60° Cone | Steel

Sale price$14.24

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Female BSP 60° Cone
Buy More, Save More!
Quantity Price Each
10–39 $13.39
40–79 $12.10
80+ $10.68
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

90 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FBC9 04 1/4" 6.4mm 04 1/4-19 16.8mm 19.5mm 19mm 0.11 lbs
A-0606-FBC9 06 3/8" 9.5mm 06 3/8-19 19.5mm 21.5mm 22mm 0.20 lbs
A-0808-FBC9 08 1/2" 12.7mm 08 1/2-14 22.2mm 22.5mm 27mm 0.31 lbs
A-1212-FBC9 12 3/4" 19.0mm 12 3/4-14 26.7mm 31.0mm 32mm 0.39 lbs
A-1616-FBC9 16 1" 25.4mm 16 1-11 34.5mm 27.5mm 38mm 0.47 lbs
