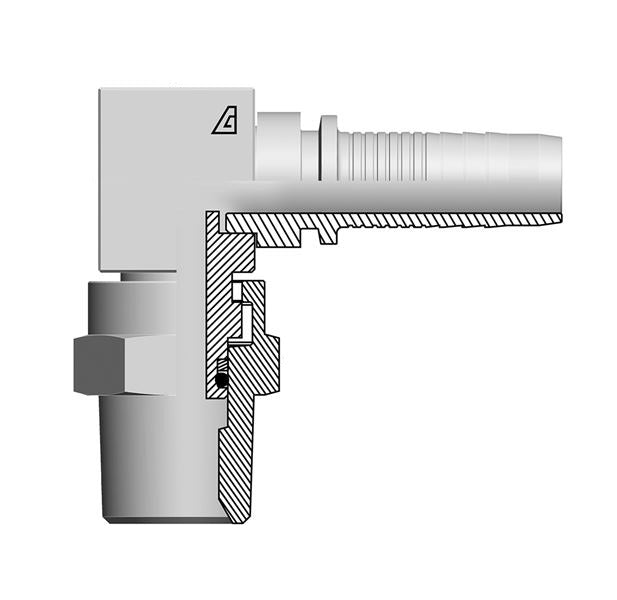

A-0606-MPS9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -06 Hose ID x -06 Male NPTF Swivel 60° Seat | Steel

A-0606-MPS9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -06 Hose ID x -06 Male NPTF Swivel 60° Seat | Steel

Sale price$26.87

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Male NPTF Swivel 60° Seat
Buy More, Save More!
Quantity Price Each
10–39 $25.26
40–79 $22.84
80+ $20.15
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

90 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-MPS9 04 1/4" 6.4mm 04 1/4-18 17mm 39mm 17mm 0.12 lbs
A-0406-MPS9 04 1/4" 6.4mm 06 3/8-18 19mm 39mm 22mm 0.13 lbs
A-0604-MPS9 06 3/8" 9.5mm 04 1/4-18 17mm 41mm 17mm 0.15 lbs
A-0606-MPS9 06 3/8" 9.5mm 06 3/8-18 20mm 41mm 22mm 0.17 lbs
A-0608-MPS9 06 3/8" 9.5mm 08 1/2-14 22mm 41mm 25mm 0.20 lbs
A-0808-MPS9 08 1/2" 12.7mm 08 1/2-14 23mm 48mm 25mm 0.29 lbs
A-1212-MPS9 12 3/4" 19.0mm 12 3/4-14 27mm 61mm 32mm 0.35 lbs
A-1616-MPS9 16 1" 25.4mm 16 1-11-1/2 35mm 70mm 41mm 0.70 lbs
