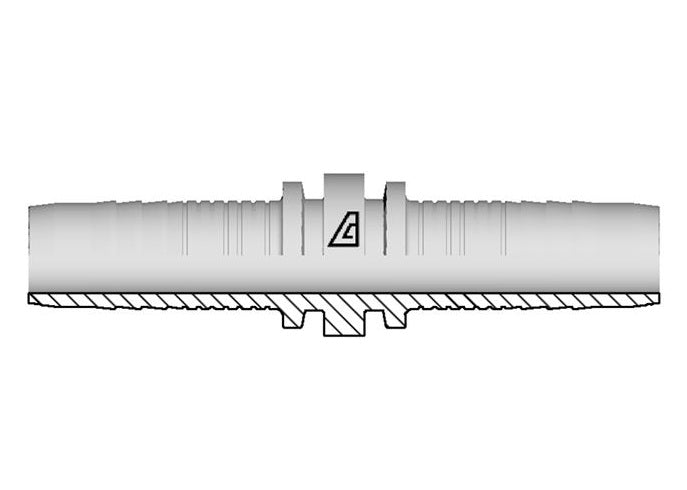

A-0505-HMEN Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Hose Mender | -05 Hose ID x -05 Hose ID | Steel

A-0505-HMEN Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Hose Mender | -05 Hose ID x -05 Hose ID | Steel

Sale price$15.11

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Mender | Hose Barb x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $14.20
40–79 $12.84
80+ $11.33
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Weight
Dash
Size		 (in.) (mm) lbs/each
A-0404-HMEN 04 1/4" 6.4mm 0.04 lbs
A-0505-HMEN 05 5/16" 7.9mm 0.05 lbs
A-0606-HMEN 06 3/8" 9.5mm 0.06 lbs
A-0808-HMEN 08 1/2" 12.7mm 0.09 lbs
A-1010-HMEN 10 5/8" 15.9mm 0.15 lbs
A-1212-HMEN 12 3/4" 19.0mm 0.21 lbs
A-1616-HMEN 16 1" 25.4mm 0.28 lbs
A-2424-HMEN 24 1-1/2" 38.1mm 0.35 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
