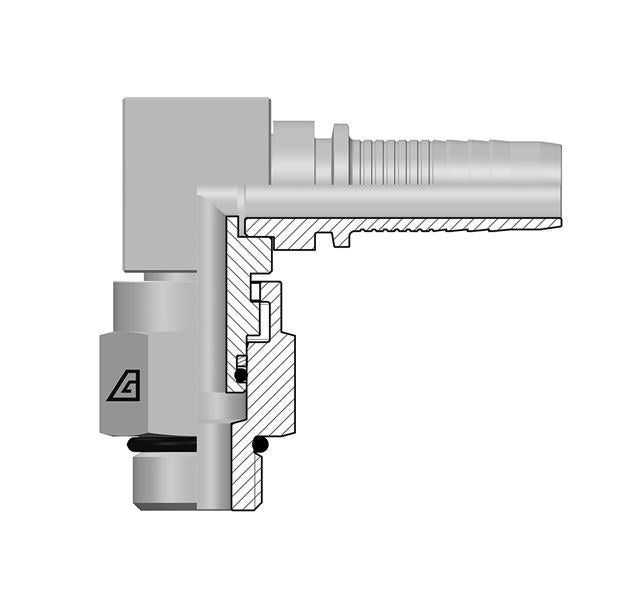

A-0405-MBS9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -04 Hose ID x -05 Male SAE O-Ring Boss Swivel | Steel

A-0405-MBS9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -04 Hose ID x -05 Male SAE O-Ring Boss Swivel | Steel

Sale price$26.88

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Male SAE O-Ring Boss Swivel
Buy More, Save More!
Quantity Price Each
10–39 $25.27
40–79 $22.85
80+ $20.16
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-MBS9 04 1/4" 6.4mm 04 7/16-20 17mm 34mm 17mm 0.14 lbs
A-0405-MBS9 04 1/4" 6.4mm 05 1/2-20 17mm 34mm 17mm 0.17 lbs
A-0406-MBS9 04 1/4" 6.4mm 06 9/16-18 18mm 36mm 19mm 0.18 lbs
A-0606-MBS9 06 3/8" 9.5mm 06 9/16-18 19mm 40mm 22mm 0.18 lbs
A-0608-MBS9 06 3/8" 9.5mm 08 3/4-16 22mm 44mm 25mm 0.18 lbs
A-0808-MBS9 08 1/2" 12.7mm 08 3/4-16 23mm 47mm 25mm 0.22 lbs
A-0810-MBS9 08 1/2" 12.7mm 10 7/8-14 23mm 49mm 25mm 0.26 lbs
A-1012-MBS9 10 5/8" 15.9mm 12 1-1/16-12 27mm 60mm 32mm 0.33 lbs
A-1212-MBS9 12 3/4" 19.0mm 12 1-1/16-12 27mm 61mm 32mm 0.37 lbs
A-1616-MBS9 16 1" 25.4mm 16 1-5/16-12 34mm 66mm 38mm 0.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
