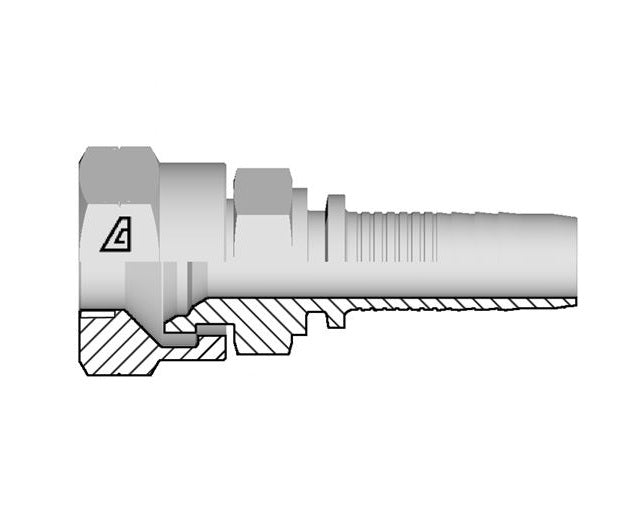

A-0404-FJIS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIS Swivel 30° Seat B 8363 Type F | Steel

A-0404-FJIS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIS Swivel 30° Seat B 8363 Type F | Steel | Pack of 5

Sale price$54.50

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female JIS Swivel 30° Seat B 8363 Type F


Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
10–39 $51.23
40–79 $46.33
80+ $40.88
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Size C
Cut-Off Factor		 Hex Dia.
CH1		 Hex Dia.
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-0404-FJIS 04 1/4" 6.4mm 04 1/4-19 20.8mm 17mm 19mm 0.09 lbs
A-0606-FJIS 06 3/8" 9.5mm 06 3/8-19mm 21.8mm 19mm 22mm 0.13 lbs
A-0808-FJIS 08 1/2" 12.7mm 08 1/2-14 23.6mm 22mm 27mm 0.20 lbs
A-1212-FJIS 12 3/4" 19.0mm 12 3/4-14 27.1mm 30mm 36mm 0.41 lbs
A-1616-FJIS 16 1" 25.4mm 16 1-11 32.9mm 36mm 41mm 0.62 lbs
A-2020-FJIS 20 1-1/4" 31.8mm 20 1-1/4-11 39.5mm 46mm 50mm 1.19 lbs
A-2424-FJIS 24 1-1/2" 38.1mm 24 1-1/2-11 41.5mm 50mm 55mm 1.48 lbs
