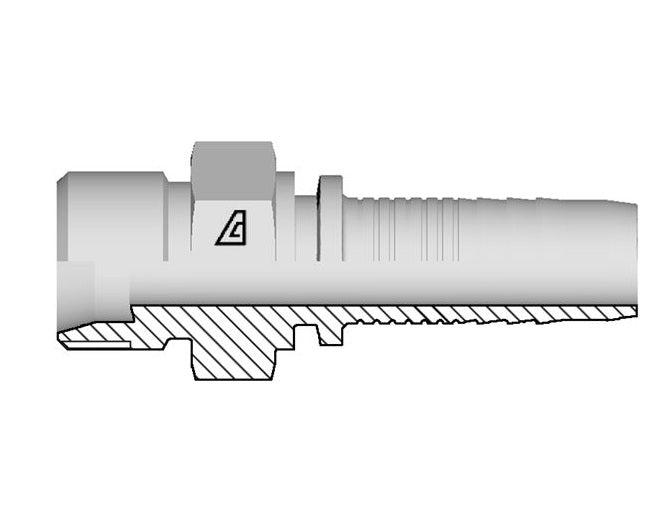

A-0404-BTTF Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Bite Type Tube Fitting | Steel

A-0404-BTTF Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Bite Type Tube Fitting | Steel

Sale price$11.77

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Bite Type Tube Fitting
Buy More, Save More!
Quantity Price Each
10–39 $11.06
40–79 $10.00
80+ $8.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-BTTF 04 1/4" 6.4mm 04 7/16-20" 21.8mm 12mm 0.06 lbs
A-0506-BTTF 05 5/16" 7.9mm 06 9/16-18" 24.2mm 16mm 0.08 lbs
A-0606-BTTF 06 3/8" 9.5mm 06 9/16-18" 24.2mm 16mm 0.09 lbs
A-0808-BTTF 08 1/2" 12.7mm 08 3/4-16" 28.4mm 22mm 0.14 lbs
A-1212-BTTF 12 3/4" 19.0mm 12 1-1/16-12" 33.1mm 30mm 0.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
