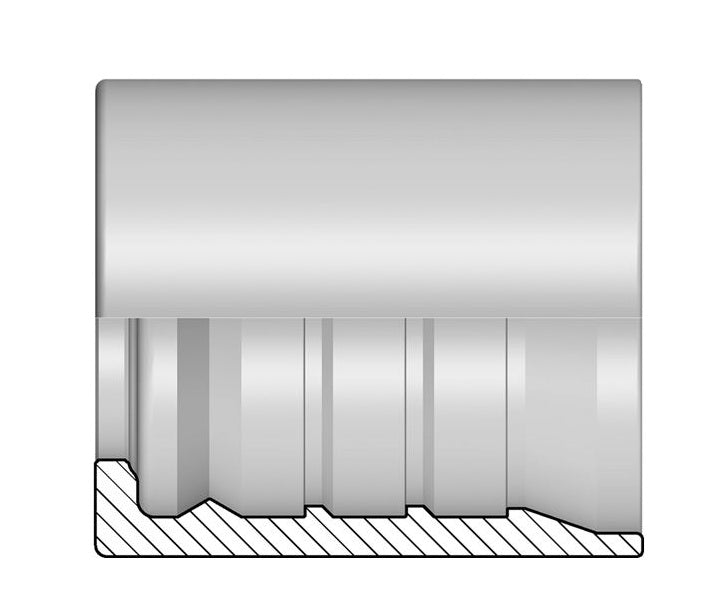

YS1-40 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -40 YS1 Interlock Skive Ferrule | Steel

YS1-40 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -40 YS1 Interlock Skive Ferrule | Steel

Sale price$135.36

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Fitting | YS1 Interlock Skive Ferrule
Buy More, Save More!
Quantity Price Each
5–19 $127.24
20–59 $115.06
60+ $101.52
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • Y Series
Material(s):
  • Steel
Part Number Dash Size Hose ID Size OD L Length Weight
in mm mm mm lbs/each
YS1-10 -10 5/8" 15.9mm 35.5mm 46.0mm 0.26 lbs
YS1-20 -20 1-1/4" 31.8mm 62.0mm 66.0mm 1.10 lbs
YS1-24 -24 1-1/2" 38.1mm 69.5mm 68.0mm 1.39 lbs
YS1-32 -32 2" 50.8mm 88.0mm 79.5mm 2.64 lbs
YS1-40 -40 2-1/2" 63.0mm 102.0mm 110.0mm 3.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
