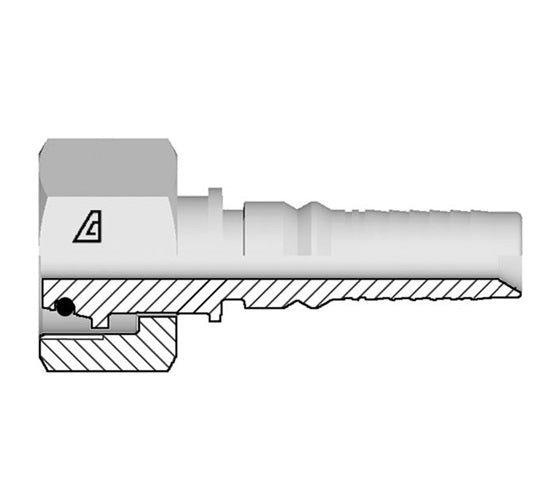

Y-1636-FMOH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Female Metric O-Ring Swivel Interlock x -16 Hose ID | Steel

Y-1636-FMOH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Female Metric O-Ring Swivel Interlock x -16 Hose ID | Steel

Sale price$41.27

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Female Metric O-Ring Swivel Interlock x Hose Barb

DIN 3865 Heavy
Buy More, Save More!
Quantity Price Each
10–39 $38.79
40–79 $35.08
80+ $30.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm lbs/each
Y-0824-FMOH -08 1/2" 12.7mm M24x1.5 16mm 29.8mm 30mm 0.31 lbs
Y-1030-FMOH -10 5/8" 25.9mm M30x2 20mm 34.4mm 36mm 0.51 lbs
Y-1230-FMOH -12 3/4" 19.0mm M30x2 20mm 37.5mm 36mm 0.6 lbs
Y-1236-FMOH -12 3/4" 19.0mm M36x2 25mm 37.6mm 46mm 0.84 lbs
Y-1636-FMOH -16 1" 25.4mm M36x2 25mm 38.8mm 46mm 1.03 lbs
Y-1642-FMOH -16 1" 25.4mm M42x2 30mm 40.7mm 50mm 1.08 lbs
Y-2042-FMOH -20 1-1/4" 31.8mm M42x2 30mm 32.2mm 50mm 1.39 lbs
Y-2052-FMOH -20 1-1/4" 31.8mm M52x2 38mm 45.3mm 60mm 1.72 lbs
Y-2052-FMOH -24 1-1/2" 38.1mm M52x2 38mm 50.8mm 60mm 2.26 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
