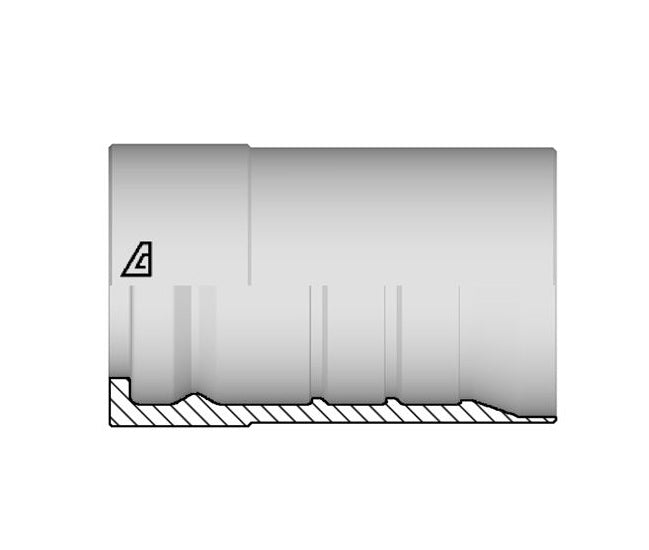

XF2-12 Alfagomma by Kuriyama | XF2 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -12 Hose Dash Size | 3/4" Hose ID | Steel

XF2-12 Alfagomma by Kuriyama | XF2 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -12 Hose Dash Size | 3/4" Hose ID | Steel

Sale price$13.29

Kuriyama of America Inc.
Alfagomma | XF2 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule
Buy More, Save More!
Quantity Price Each
10–39 $12.49
40–79 $11.30
80+ $9.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • XF2 Series
Material(s):
  • Steel
About XF1 Series Fittings:
  • Two piece Interlock ferrule for use with "X" Interlock insert on spiral wire reinforced hoses. Requires internal and external skiving.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size B
OD		 L
Length		 Weight
Dash
Size		 (in.) (mm) (mm) (mm) lbs/each
XF2-08 08 1/2" 12.7mm 30mm 52.5mm 0.25 lbs
XF2-12 12 3/4" 19.0mm 38mm 60.1mm 0.32 lbs
XF2-16 16 1" 25.4mm 46mm 74.6mm 0.59 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
