X-0808-MNPT Alfagomma by Kuriyama | X Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -08 Male NPTF 60° Seat Interlock | Steel
Kuriyama of America Inc.

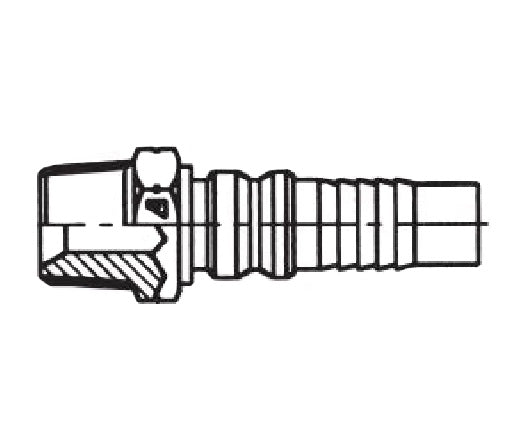

Alfagomma | X Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat Interlock
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.81 |
| 40–79 | $14.30 |
| 80+ | $12.62 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Hydraulic Hose Fittings
X-Series MNPT® Interlock
Two-piece interlock fitting with Male NPTF 60° seat for spiral wire reinforced hoses. Alfagomma Top Coat finish delivers 500+ hours corrosion protection.
Interlock Insert
Two-piece for spiral wire hoses
Male NPTF
60° seat thread connection
500+ Hrs Salt Spray
Alfagomma Top Coat corrosion protection
Skive Required
Internal & external skiving needed
Assembly & Finish
specs & ratings| Hose Compatibility | Spiral wire reinforced hoses | ||
| Required Ferrule | XF1 or XF2 Interlock ferrule | Preparation | Internal & external skiving required |
| Coating | Alfagomma Top Coat | Test Standards | ASTM B117-03 & UNI ISO 9227 |
| White Rust Resistance | 500+ hours salt spray fog | Red Rust Resistance | 1000+ hours |
Product Catalog
2 sizes| Part # | Dash | Hose ID | Hose ID (mm) | F Thread | C — Cut-Off | Hex (CH1) | Weight |
|---|---|---|---|---|---|---|---|
| X-0808-MNPT | 08 | 1/2" | 12.7mm | 1/2-14 | 32.0mm | 22mm | 0.21 lbs |
| X-1212-MNPT | 12 | 3/4" | 19.0mm | 3/4-14 | 32.0mm | 27mm | 0.35 lbs |
