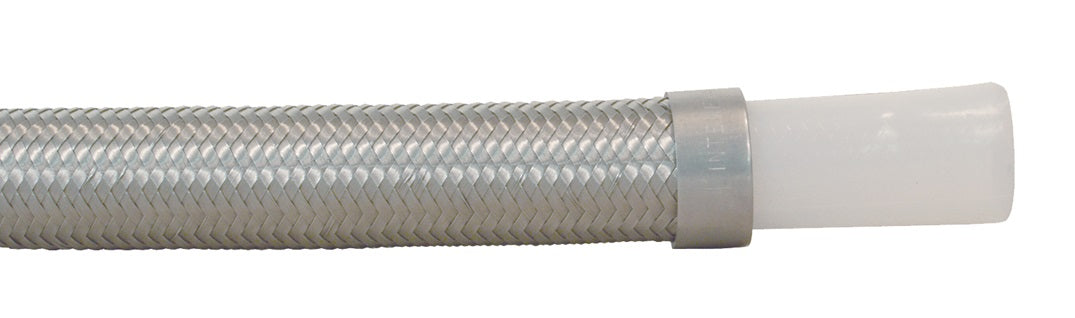

WTB-T04 by Dixon Valve | -04 | Heavy Wall True I.D. Smooth Bore PTFE Hose | 1/4" Size | White Non-Conductive Tube

WTB-T04 by Dixon Valve | -04 | Heavy Wall True I.D. Smooth Bore PTFE Hose | 1/4" Size | White Non-Conductive Tube

Sale price$13.10

Dixon Valve
PTFE Hose | Heavy Wall True I.D. Smooth Bore Hose

Suitable for conveying acids, chemicals, foods and pharmaceuticals.
Buy More, Save More!
Quantity Price Each
10–39 $12.31
40–79 $11.14
80+ $9.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • WTB-T Series
Color(s):
  • Metallic
Dash Size:
  • -04
Materials:
  • 304 stainless braided
Specifications:
  • Temperature Range: -100°F to 450°F (-73°C to 232°C)
  • FITTINGS NOT INCLUDED
White, Non-Conductive
Part Number		 Size Working Pressure Burst Pressure
WTB-T04 1/4" 3000 PSI 12000 PSI
WTB-T06 3/8" 2250 PSI 9000 PSI
WTB-T08 1/2" 1500 PSI 6000 PSI
WTB-T12 3/4" 1100 PSI 4400 PSI
WTB-T16 1" 900 PSI 3600 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
