WOR150X100 Tigerflex by Kuriyama | WOR Series | Heavy Duty Oil Resistant Suction Hose | 1-1/2" ID | PVC | 100ft Length

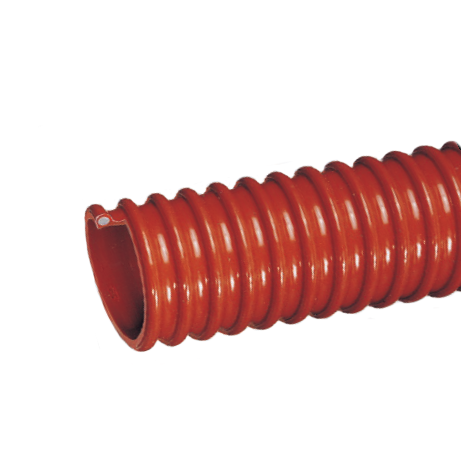

Kuriyama Tigerflex WOR™ Series Heavy Duty Oil Resistant PVC Suction Hose
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $423.04 |
| 15–29 | $382.53 |
| 30+ | $337.53 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
50
Tubing Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Oil Resistant PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | 5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| WOR150X100 | 1-1/2" | 38.1mm | 1.92" | 48.8mm | 50 PSI | 25 PSI | 28 in .Hg | 24 in .Hg | 3" | 100ft | 0.31 lbs |
| WOR200X100 | 2" | 50.8mm | 2.40" | 61.0mm | 40 PSI | 20 PSI | 28 in .Hg | 24 in .Hg | 4" | 100ft | 0.50 lbs |
| WOR300X100 | 3" | 76.2mm | 3.64" | 92.5mm | 40 PSI | 20 PSI | 28 in .Hg | 24 in .Hg | 6" | 100ft | 1.17 lbs |
| WOR400X100 | 4" | 101.6mm | 4.72" | 119.9mm | 35 PSI | 18 PSI | 28 in .Hg | 22 in .Hg | 10" | 100ft | 1.74 lbs |
