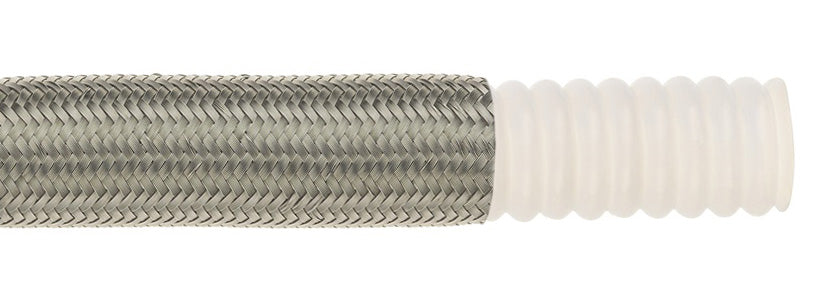

WOC-T20 by Dixon Valve | -20 | True I.D. Open Pitch Convoluted PTFE Hose | 1-1/4" Size | White Non-Conductive Tube

WOC-T20 by Dixon Valve | -20 | True I.D. Open Pitch Convoluted PTFE Hose | 1-1/4" Size | White Non-Conductive Tube

Sale price$49.67

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.
Buy More, Save More!
Quantity Price Each
10–39 $46.69
40–79 $42.22
80+ $37.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • WOC-T Series
Color(s):
  • Metallic
Dash Size:
  • -20

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.


Materials:
  • 304 stainless braided
Specifications:
  • Temperature Range: -100°F to 450°F (-73°C to 232°C)
  • FITTINGS NOT INCLUDED
White, Non-Conductive
Part Number		 Black, Conductive
Part Number		 Size Working Pressure Burst Pressure
WOC-T04 BOC-T04 1/4" 1740 PSI 6960 PSI
WOC-T06 BOC-T06 3/8" 1850 PSI 7400 PSI
WOC-T08 BOC-T08 1/2" 1500 PSI 6000 PSI
WOC-T12 BOC-T12 3/4" 1300 PSI 5200 PSI
WOC-T16 BOC-T16 1" 1000 PSI 4000 PSI
WOC-T20 BOC-T20 1-1/4" 900 PSI 3600 PSI
WOC-T24 BOC-T24 1-1/2" 700 PSI 2800 PSI
WOC-T32 BOC-T32 2" 500 PSI 2000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
