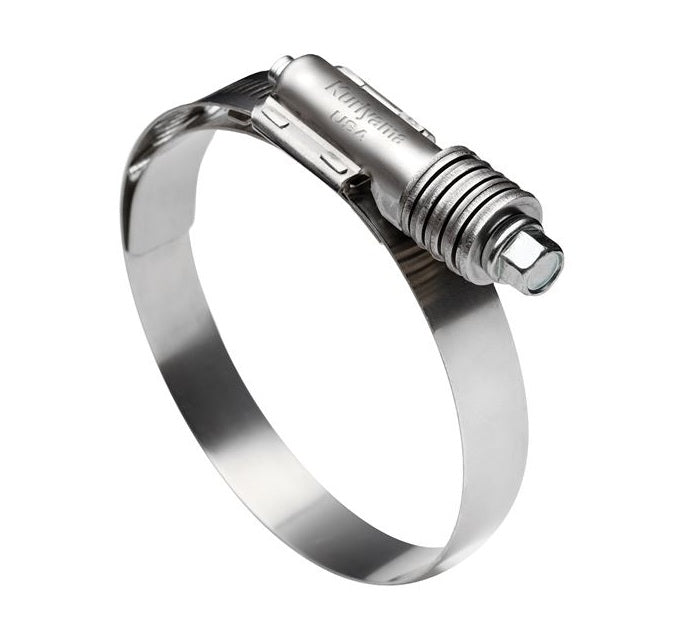

WGC-CT200 Kuri-Clamp™ by Kuriyama | Constant Tension Worm Gear Clamp | 1-1/4" to 2-1/8" Size Range | 9/16" Band Width | Stainless Steel & Plated Carbon Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Air intake and coolant connections.
- Systems where clamps cannot be retightened.
- Systems with expansion or contraction.
What are the Features?
- "Constant Tension" Performance - Belleville spring mechanism permits the clamps to automatically increase or decrease diameter due to operational or environmental temperature changes.
- Extended Inner Liner - Protects silicone and other soft hoses from damage, extrusion or shear.
- Quadra-Lock Housing - Four-piece, quadra-lock housing design: added saddle eliminates risk of seam separation, virtually eliminating housing "lift and twist".
- Evenly Distributed Radial Pressure - Quality controlled to military standard specifications for even distribution of sealing pressure. Eliminates leakage caused by uneven housings and provides higher sealing pressure with lower applied torque.
- Heavy Duty Stainless Steel Band - 300 Series stainless steel band provides durability and superior corrosion resistance. Wider than standard clamps for greater strength.
- Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
- Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw for increased torque strength.
- Meets Industry Standards - Clamps are SAE J1508 Type SLDH and RoHS compliant.
- Torque Rating - Suggested installation torque of 90 inch pounds.
How is it Constructed?
- 5/8" wide, 300 series stainless steel band.
- Plated carbon steel hex screw with 3/8" head.
- Two-piece, 300 series stainless steel housing.
- Ten Bellville spring washers.
| Part Number | Size Range (in) |
Band Width (in) |
Torque Rating (in/lbs) |
|---|---|---|---|
| WGC-CT175 | 1" - 1-3/4" | 9/16" | 90 in/lbs |
| WGC-CT200 | 1-1/4" - 2-1/8" | 9/16" | 90 in/lbs |
| WGC-CT250 | 1-3/4" - 2-5/8" | 9/16" | 90 in/lbs |
| WGC-CT300 | 2" - 3-1/8" | 9/16" | 90 in/lbs |
| WGC-CT350 | 2-3/4" - 3-5/8" | 9/16" | 90 in/lbs |
| WGC-CT400 | 3-1/4" - 4-1/8" | 9/16" | 90 in/lbs |
| WGC-CT450 | 3-3/4" - 4-5/8" | 9/16" | 90 in/lbs |
| WGC-CT500 | 4-1/4" - 5-1/8" | 9/16" | 90 in/lbs |
| WGC-CT550 | 4-3/4" - 5-5/8" | 9/16" | 90 in/lbs |
| WGC-CT600 | 5-1/4" - 6-1/8" | 9/16" | 90 in/lbs |
| WGC-CT650 | 5-3/4" - 6-5/8" | 9/16" | 90 in/lbs |
| WGC-CT700 | 6-1/4" - 7-1/8" | 9/16" | 90 in/lbs |
| WGC-CT750 | 6-3/4" - 7-5/8" | 9/16" | 90 in/lbs |
| WGC-CT800 | 7-1/4" - 8-1/8" | 9/16" | 90 in/lbs |
| WGC-CT850 | 7-3/4" - 8-5/8" | 9/16" | 90 in/lbs |
| WGC-CT900 | 8-1/4" - 9-1/8" | 9/16" | 90 in/lbs |
Additional Product Data:
Brand:
Series:
Material(s):
Clamp Width:
0.5625in
Minimum Clamp I.D.:
1.25in
Maximum Clamp I.D.:
2.125in
