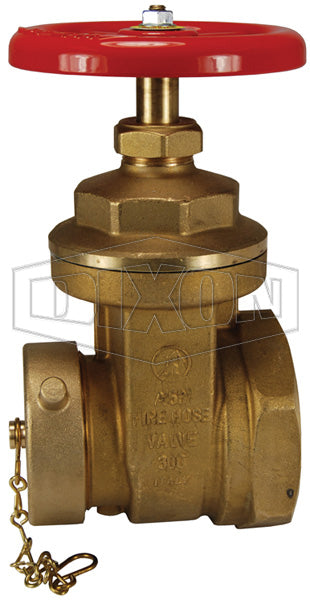

WDGV3025F Dixon Forged Brass Non-Rising Stem Wedge Disc Gate Valve - 3" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet

WDGV3025F Dixon Forged Brass Non-Rising Stem Wedge Disc Gate Valve - 3" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet

Sale price$523.32

Dixon Fire Fittings
Non-Rising Stem Wedge Disc Gate Valves - Forged Brass

For use on standpipes, fire pumps and hydrants.
Buy More, Save More!
Quantity Price Each
5–14 $491.92
15–29 $444.82
30+ $392.49
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 2-1/2in Male NST
Material(s):
  • Brass
Features:
  • Satin finish.
  • Red handwheel.
  • Solid wedge disc with tapered seats.
  • Straightway pattern.
  • UL listed and FM approved.
  • Working pressure: 300 PSI at 70°F (21°C).
Part Number Female NPT Inlet Male NST
(NH) Outlet		 Weight
(Lbs.)
WDGV251F 2-1/2" 2-1/2" 8.8000
WDGV3025F 3" 2-1/2" 9.5000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
