WB15-08 Alfagomma by Kuriyama | WB15 Series | Waterblast Hose | 4-Wire Spiral | 1/2" ID | 1.00" OD | 16000 PSI | 50ft Length
Kuriyama of America Inc.

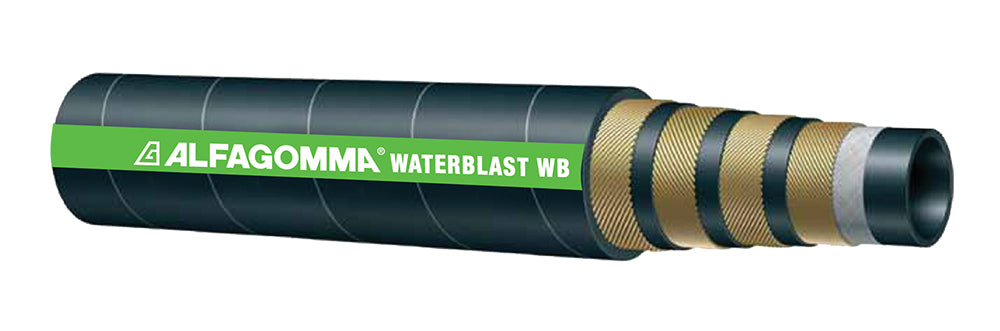

Alfagomma | WB15 Series | Waterblast Hose | 4-Wire Spiral
For high pressure water jetting.
Package Quantity: 50 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $570.08 |
| 15–29 | $515.50 |
| 30+ | $454.85 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
16000
Tubing Construction:
Cover Construction:
| Application: | High pressure water jetting. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Oil and water resistant synthetic rubber. |
| Reinforcement: | Four high tensile steel spirals. | Cover: | Oil, water and ozone resistant synthetic rubber. |
| Service Temperature Range: | Constant operation: +14°F (-10°C) to +158°F (+70°C) | Ambient Temperature: | - |
| Branding: | Dunlop Hiflex | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| WB15-08 | 1/2" | 12.7mm | 1.00" | 25.4mm | 16000 | 8.0" | 203.2mm | 0.75ft |
| WB15-12 | 3/4" | 19.1mm | 1.25" | 31.8mm | 14500 | 11.0" | 279.4mm | 1.13ft |
* Minimum burst pressure: 2.5:1 safety factor.
