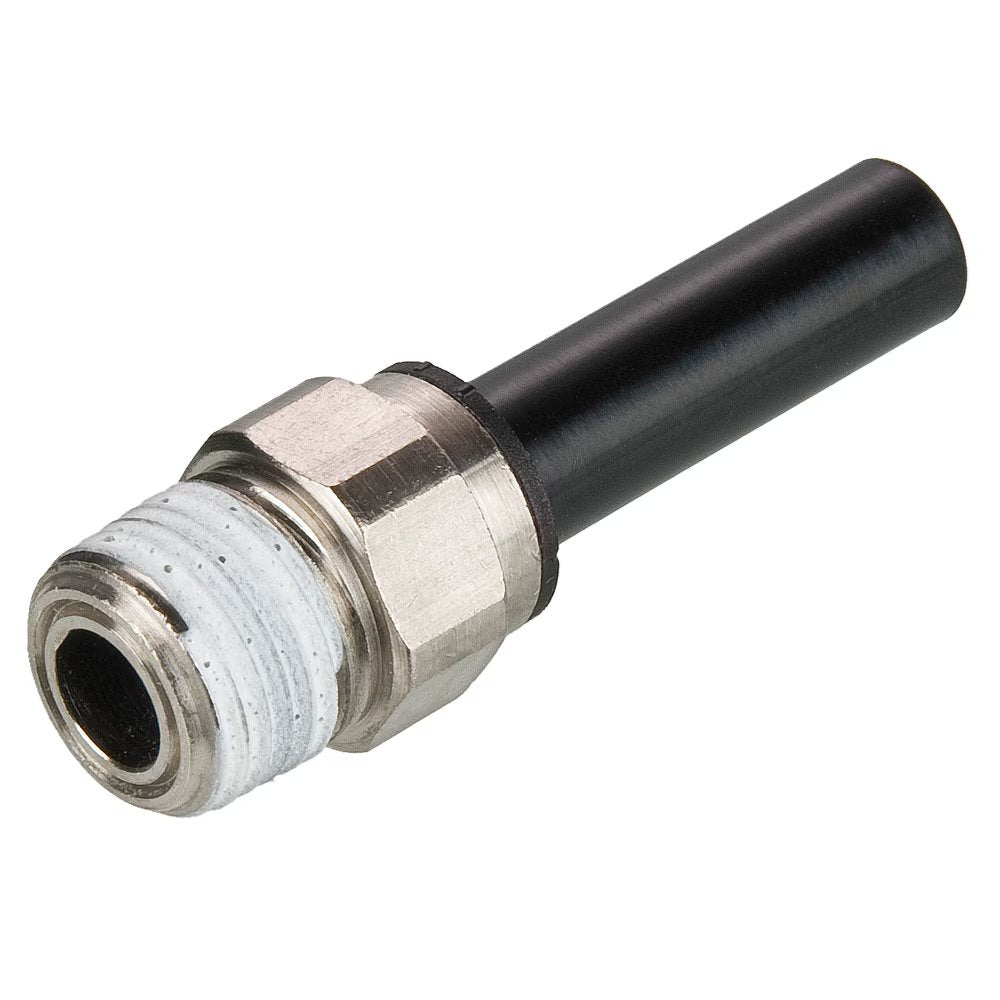

W68PLPSP-4-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 1/4" Standpipe Tube Size x 1/4" Male NPT Thread | 14mm Hex | Straight | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W68PLPSP Male Standpipe - NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $49.16 |
| 40–79 | $44.46 |
| 80+ | $39.23 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT / UNF | Hex (C) | H | H1 |
| 68PLPSP-4M-0 | 5/32" | 10-32" | 8 mm | 1.24" | - |
| W68PLPSP-4M-2 | 5/32" | 1/8" | 11 mm | 1.02" | .57" |
| W68PLPSP-4M-4 | 5/32" | 1/4" | 14 mm | 1.04" | .59" |
| W68PLPSP-4-2 | 1/4" | 1/8" | 11 mm | 1.18" | .61" |
| W68PLPSP-4-4 | 1/4" | 1/4" | 14 mm | 1.12" | .57" |
| W68PLPSP-8M-2 | 5/16" | 1/8" | 11 mm | 1.16" | .43" |
| W68PLPSP-8M-4 | 5/16" | 1/4" | 14 mm | 1.12" | .39" |
| W68PLPSP-6-2 | 3/8" | 1/8" | 15 mm | 1.47" | .81" |
| W68PLPSP-6-4 | 3/8" | 1/4" | 15 mm | 1.42" | .67" |
| W68PLPSP-6-6 | 3/8" | 3/8" | 17 mm | 1.42" | .61" |
| W68PLPSP-8-6 | 1/2" | 3/8" | 8 mm | 1.44" | .37" |
| W68PLPSP-8-8 | 1/2" | 1/2" | 21 mm | 1.46" | .39" |
