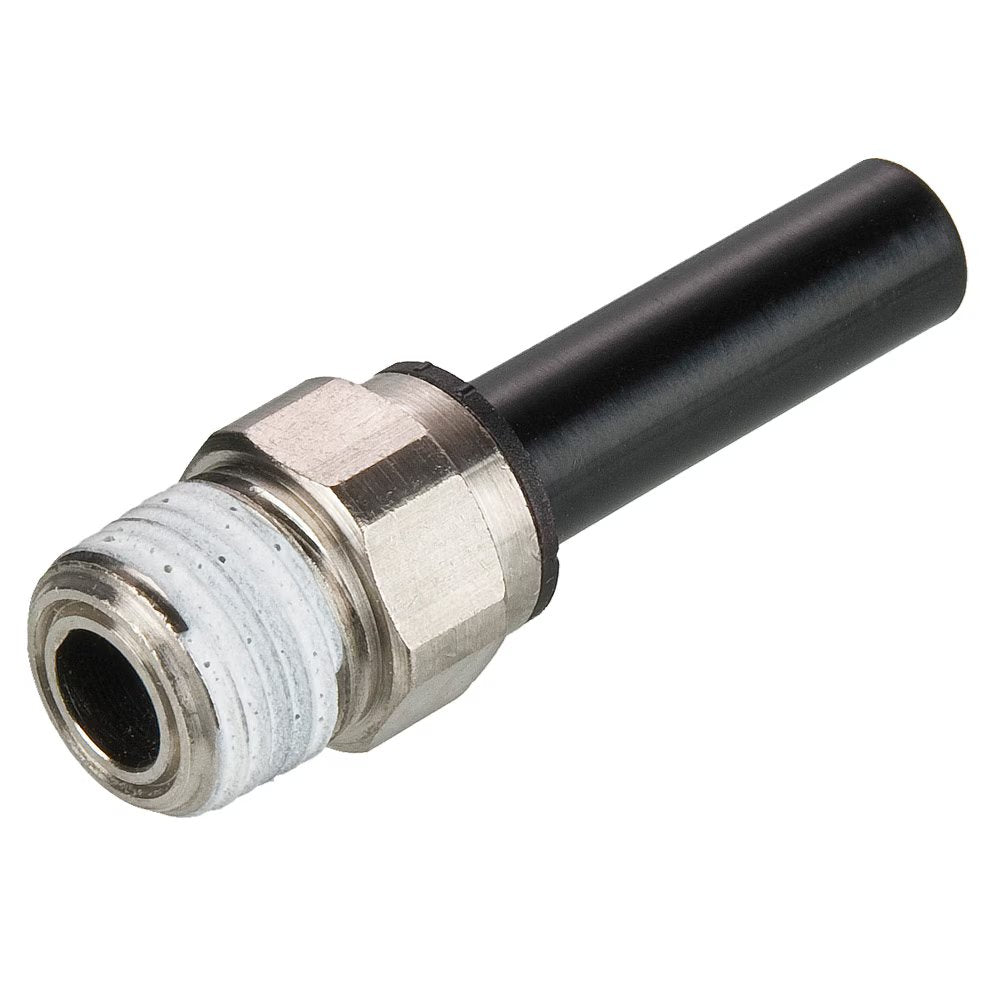

W68PLPSP-10M-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 10mm Standpipe Tube Size x 1/4" Male BSPT Thread | 15mm Hex | Straight | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W68PLPSP Male Standpipe - BSPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.43 |
| 20–59 | $83.58 |
| 60+ | $73.75 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | BSPT | Hex (C) | H | H1 |
| W68PLPSP-4M-2R | 4 mm | 1/8" | 10 mm | 26.0 | 14.0 mm |
| W68PLPSP-4M-4R | 4 mm | 1/4" | 14 mm | 26.5 | 14.5 mm |
| W68PLPSP-6M-2R | 6 mm | 1/8" | 10 mm | 28.0 | 14.0 mm |
| W68PLPSP-6M-4R | 6 mm | 1/4" | 14 mm | 28.5 | 14.5 mm |
| W68PLPSP-8M-2R | 8 mm | 1/8" | 10 mm | 29.5 | 11.0 mm |
| W68PLPSP-8M-4R | 8 mm | 1/4" | 14 mm | 28.5 | 10.0 mm |
| W68PLPSP-10M-4R | 10 mm | 1/4" | 15 mm | 36.0 | 15.5 mm |
| W68PLPSP-10M-6R | 10 mm | 3/8" | 17 mm | 36.0 | 15.5 mm |
| W68PLPSP-10M-8R | 10 mm | 1/2" | 21 mm | 36.0 | 15.5 mm |
| W68PLPSP-12M-6R | 12 mm | 3/8" | 17 mm | 36.5 | 12.0 mm |
| W68PLPSP-12M-8R | 12 mm | 1/2" | 21 mm | 36.5 | 12.0 mm |
