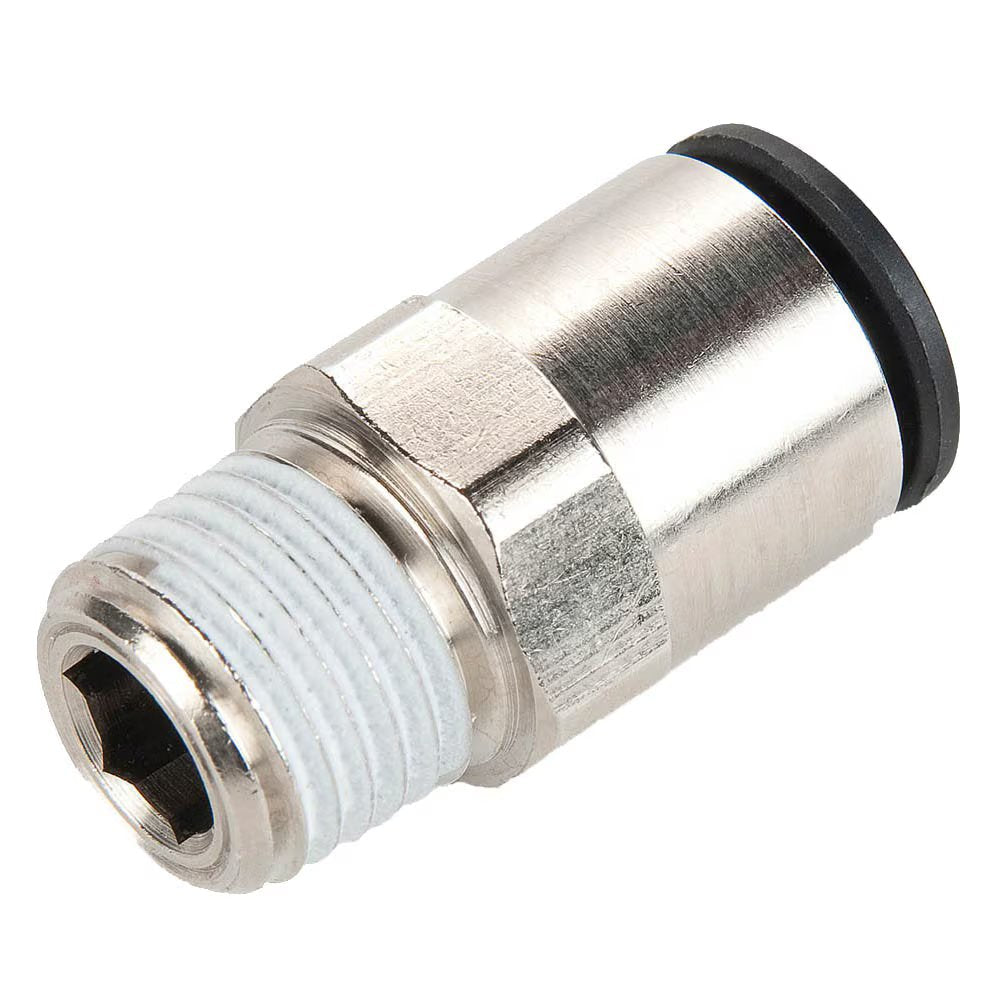

W68LF-2-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 1/8" Connector x 1/4 Male NPT Thread | .591" Width | Straight | Brass | Pack of 10

W68LF-2-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 1/8" Connector x 1/4 Male NPT Thread | .591" Width | Straight | Brass | Pack of 10

Sale price$69.18

by Parker Hannifin
Push-to-Connect Fittings:W68LF Male Connector – NPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $65.03
40–79 $58.80
80+ $51.89
Discounts applied in cart/checkout.

Product Data:

Series:
  • W68LF Series
Shape:

Straight

Ends Configuration:
  • 1/8in Push-to-Connect
  • 1/4in Female NPT
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size NPT (C) F1 F2 H K
W68LF-2-1 1/8" 1/16" 10 mm .07" .413" .433"
W68LF-2-2 1/8" 1/8" 11 mm .07" .283" .472"
W68LF-2-4 1/8" 1/4" 14 mm .07" .315" .591"
W68LF-4-2 1/4" 1/8" 11 mm .16" .472" .472"
W68LF-4-4 1/4" 1/4" 14 mm .16" .374" .590"
W68LF-4-6 1/4" 3/8" 18 mm .19" .295" .767"
W68LF-6-2 3/8" 1/8" 16 mm .16" .894" .689"
W68LF-6-4 3/8" 1/4" 16 mm .28" .807" .689"
W68LF-6-6 3/8" 3/8" 18 mm .28" .689" .767"
W68LF-6-8 3/8" 1/2" 22 mm .28" .610" .945"
W68LF-8-4 1/2" 1/4" 22 mm .22" 1.100" .945"
W68LF-8-6 1/2" 3/8" 22 mm .28" 1.100" .945"
W68LF-8-8 1/2" 1/2" 22 mm .28" 1.100" .945"
