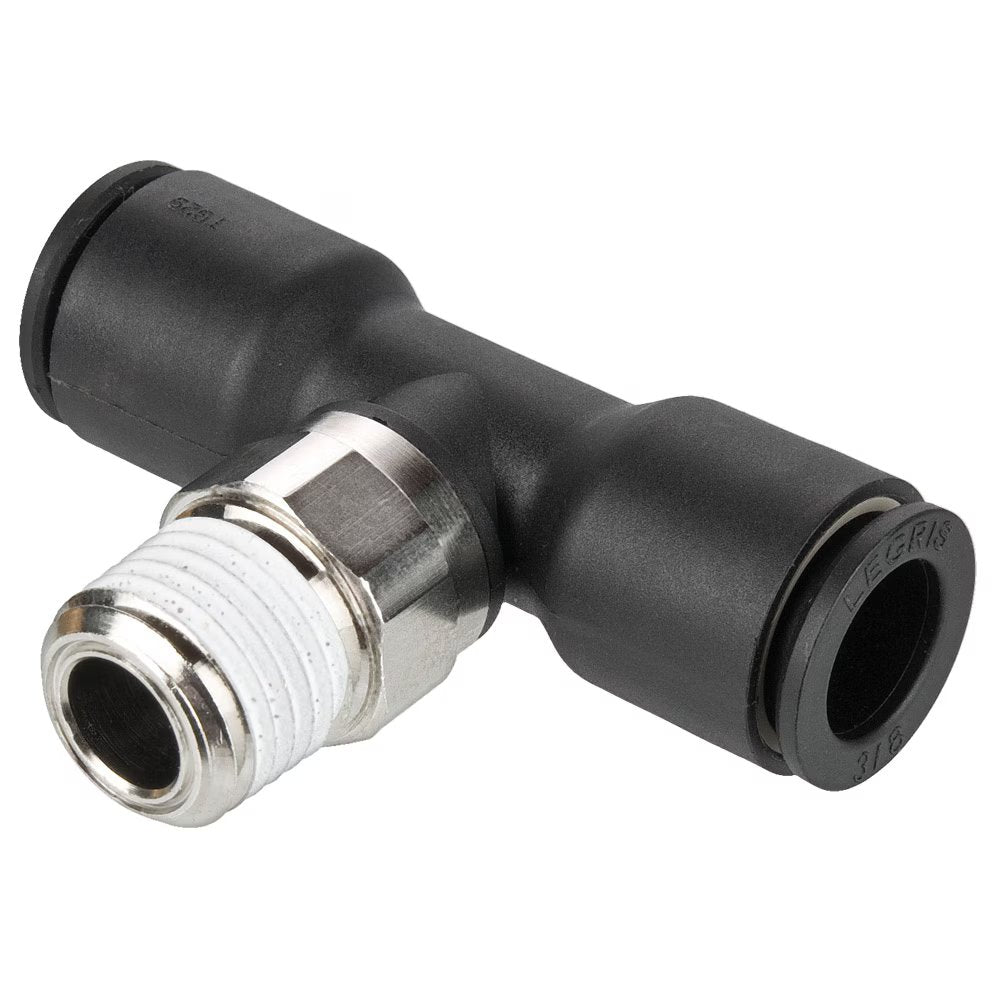

W372PLP-6-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Tube Size x 1/4" Male BSPT Thread | 15mm Hex | 1.04" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

W372PLP-6-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Tube Size x 1/4" Male BSPT Thread | 15mm Hex | 1.04" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

Sale price$100.51

by Parker Hannifin
Push-to-Connect Fittings:W372PLP Male Branch Tee - BSPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $94.48
30–59 $85.43
60+ $75.38
Discounts applied in cart/checkout.

Product Data:

Series:
  • W372PLP Series
Shape:

Tee

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • 1/4in Male BSPT
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread BSPT Hex (C) L/2 H
W372PLP-2-2R 1/8" 1/8" 10 mm .55" .61"
W372PLP-3-2R 3/16" 1/8" 11 mm .85" .67"
W372PLP-3-4R 3/16" 1/4" 14 mm .85" .67"
W372PLP-4-2R 1/4" 1/8" 10 mm .71" .67"
W372PLP-4-4R 1/4" 1/4" 14 mm .71" .63"
W372PLP-6-4R 3/8" 1/4" 15 mm 1.04" .95"
W372PLP-6-6R 3/8" 3/8" 17 mm 1.04" .95"
