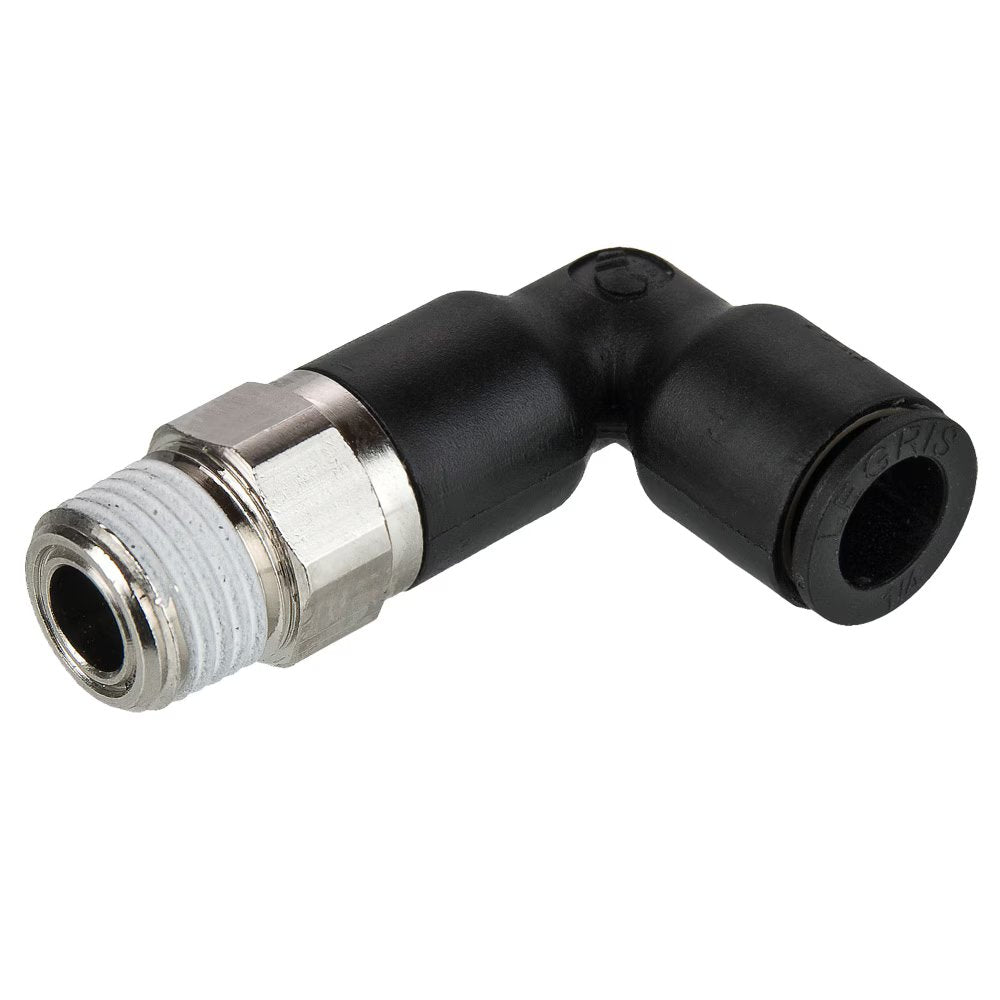

W369PLPX-14M-8R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 14mm Extended x 1/2" Male BSPT Thread | 21mm Hex | 46.5mm | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W369PLPX Extended Male Elbow - BSPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $196.63 |
| 20–59 | $177.80 |
| 60+ | $156.89 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPT | Hex (C) | H | L |
| W369PLPX-4M-2R | 4 mm | 1/8" | 10 mm | 23.0 mm | 19.0 mm |
| W369PLPX-4M-4R | 4 mm | 1/4" | 14 mm | 23.5 mm | 19.0 mm |
| W369PLPX-6M-2R | 6 mm | 1/8" | 10 mm | 27.0 mm | 22.5 mm |
| W369PLPX-6M-4R | 6 mm | 1/4" | 14 mm | 27.5 mm | 22.5 mm |
| W369PLPX-8M-2R | 8 mm | 1/8" | 13 mm | 34.5 mm | 29.5 mm |
| W369PLPX-8M-4R | 8 mm | 1/4" | 14 mm | 32.5 mm | 29.5 mm |
| W369PLPX-8M-6R | 8 mm | 3/8" | 17 mm | 33.0 mm | 29.5 mm |
| W369PLPX-10M-4R | 10 mm | 1/4" | 15 mm | 39.5 mm | 34.5 mm |
| W369PLPX-10M-6R | 10 mm | 3/8" | 17 mm | 39.5 mm | 34.5 mm |
| W369PLPX-10M-8R | 10 mm | 1/2" | 21 mm | 39.5 mm | 34.5 mm |
| W369PLPX-12M-4R | 12 mm | 1/4" | 19 mm | 45.5 mm | 40.5 mm |
| W369PLPX-12M-6R | 12 mm | 3/8" | 19 mm | 45.5 mm | 40.5 mm |
| W369PLPX-12M-8R | 12 mm | 1/2" | 21 mm | 45.5 mm | 40.5 mm |
| W369PLPX-14M-6R | 14 mm | 3/8" | 21 mm | 51.5 mm | 46.5 mm |
| W369PLPX-14M-8R | 14 mm | 1/2" | 21 mm | 51.5 mm | 46.5 mm |
