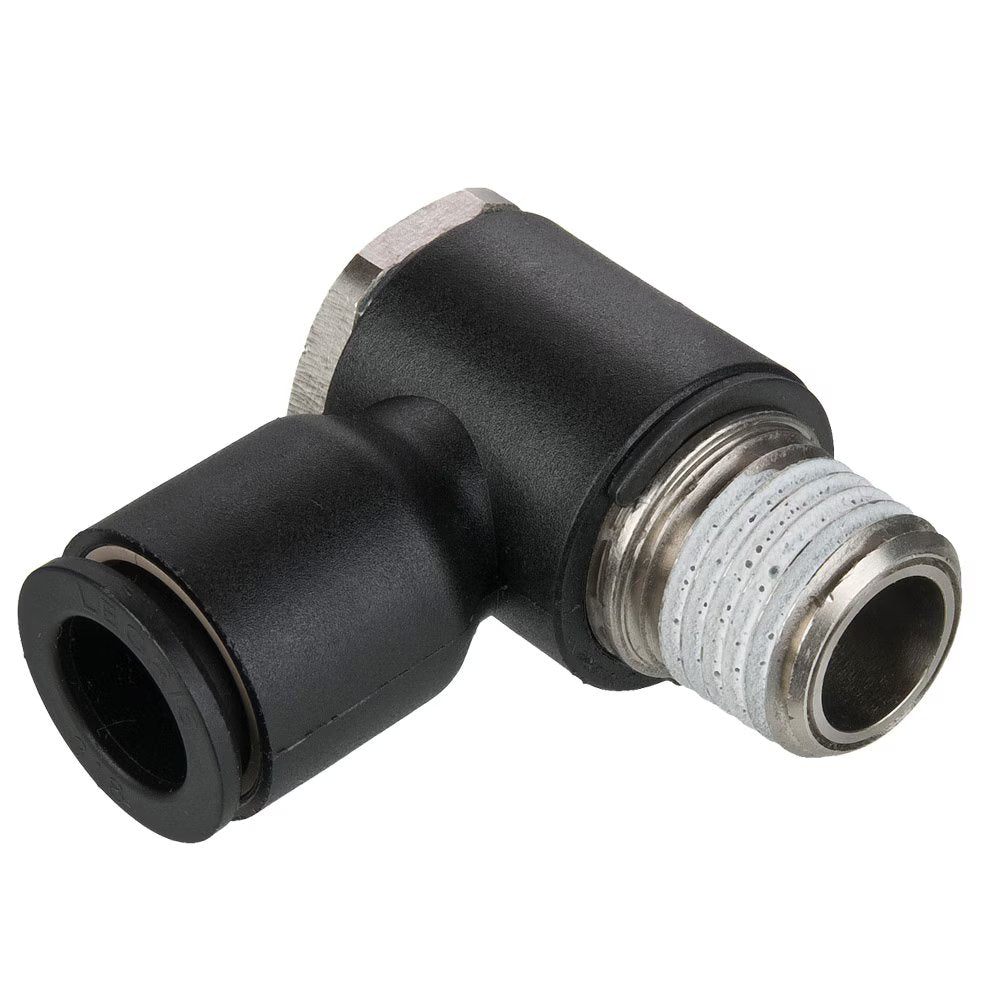

W369PLPBJ-4-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 1/4" Banjo x 1/4" Male NPT Thread | 17mm Hex | .91" Length (L) | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W369PLPBJ Banjo - NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $222.05 |
| 20–59 | $200.79 |
| 60+ | $177.17 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT / UNF | Hex (C) | H | L2 |
| 369PLPBJ-2-0 | 1/8" | 10-32" | - | .79" | .65" |
| 369PLPBJ-4M-0 | 5/32" | 10-32" | - | .79" | .65" |
| W369PLPBJ-4M-2 | 5/32" | 1/8" | 13 mm | .79" | .73" |
| 369PLPBJ-4-0 | 10-32" | 1/4" | - | .79" | .73" |
| W369PLPBJ-4-2 | 1/4" | 1/8" | 13 mm | .73" | .83" |
| W369PLPBJ-4-4 | 1/4" | 1/4" | 17 mm | .89" | .91" |
| W369PLPBJ-4-6 | 1/4" | 3/8" | 21 mm | 1.04" | 1.12" |
| W369PLPBJ-6-4 | 3/8" | 1/4" | 17 mm | .89" | 1.12" |
| W369PLPBJ-6-6 | 3/8" | 3/8" | 21 mm | 1.04" | 1.20" |
