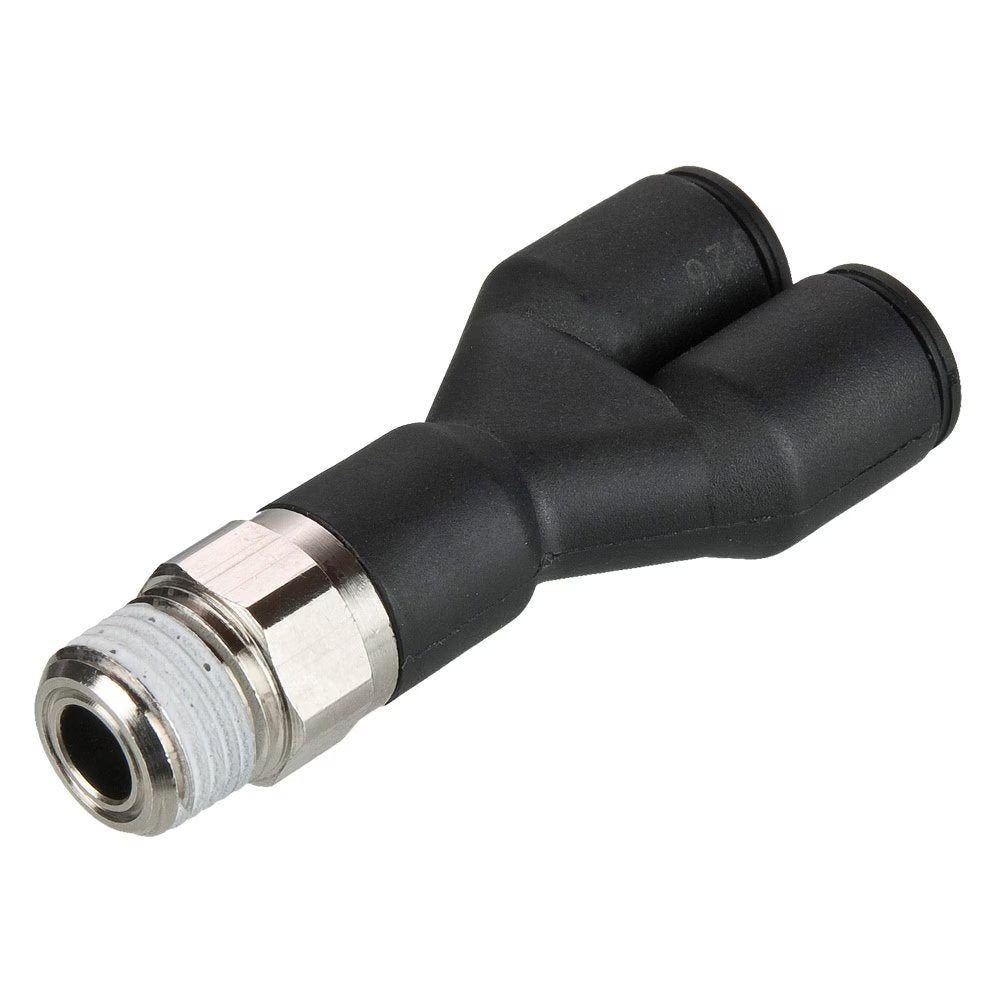

W368PLP-4M-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 4mm Connector x 1/4" Male BSPT Thread | 14mm Hex | 17.5mm Length (L) | Y | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W368PLP Male Y Connector - BSPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $93.66 |
| 20–59 | $84.69 |
| 60+ | $74.73 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Y
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPT | Hex (C) | H | L | N |
| W368PLP-4M-2R | 4 mm | 1/8" | 10 mm | 32.5 mm | 17.5 mm | 9.0 mm |
| W368PLP-4M-4R | 4 mm | 1/4" | 14 mm | 33.0 mm | 17.5 mm | 9.0 mm |
| W368PLP-6M-2R | 6 mm | 1/8" | 10 mm | 39.5 mm | 21.5 mm | 1.0 mm |
| W368PLP-6M-4R | 6 mm | 1/4" | 14 mm | 40.0 mm | 21.0 mm | 1.0 mm |
| W368PLP-8M-2R | 8 mm | 1/8" | 13 mm | 56.5 mm | 14.5 mm | 9.0 mm |
| W368PLP-8M-4R | 8 mm | 1/4" | 14 mm | 55.5 mm | 28.0 mm | 14.5 mm |
| W368PLP-8M-6R | 8 mm | 3/8" | 16 mm | 48.5 mm | 28.0 mm | 14.5 mm |
| W368PLP-10M-4R | 10 mm | 1/4" | 14 mm | 60.0 mm | 39.0 mm | 20.0 mm |
| W368PLP-10M-6R | 10 mm | 3/8" | 16 mm | 60.5 mm | 39.0 mm | 20.0 mm |
| W368PLP-10M-8R | 10 mm | 1/2" | 24 mm | 61.0 mm | 39.0 mm | 20.0 mm |
| W368PLP-12M-6R | 12 mm | 3/8" | 19 mm | 66.0 mm | 39.0 mm | 20.0 mm |
| W368PLP-12M-8R | 12 mm | 1/2" | 21 mm | 66.0 mm | 39.0 mm | 20.0 mm |
