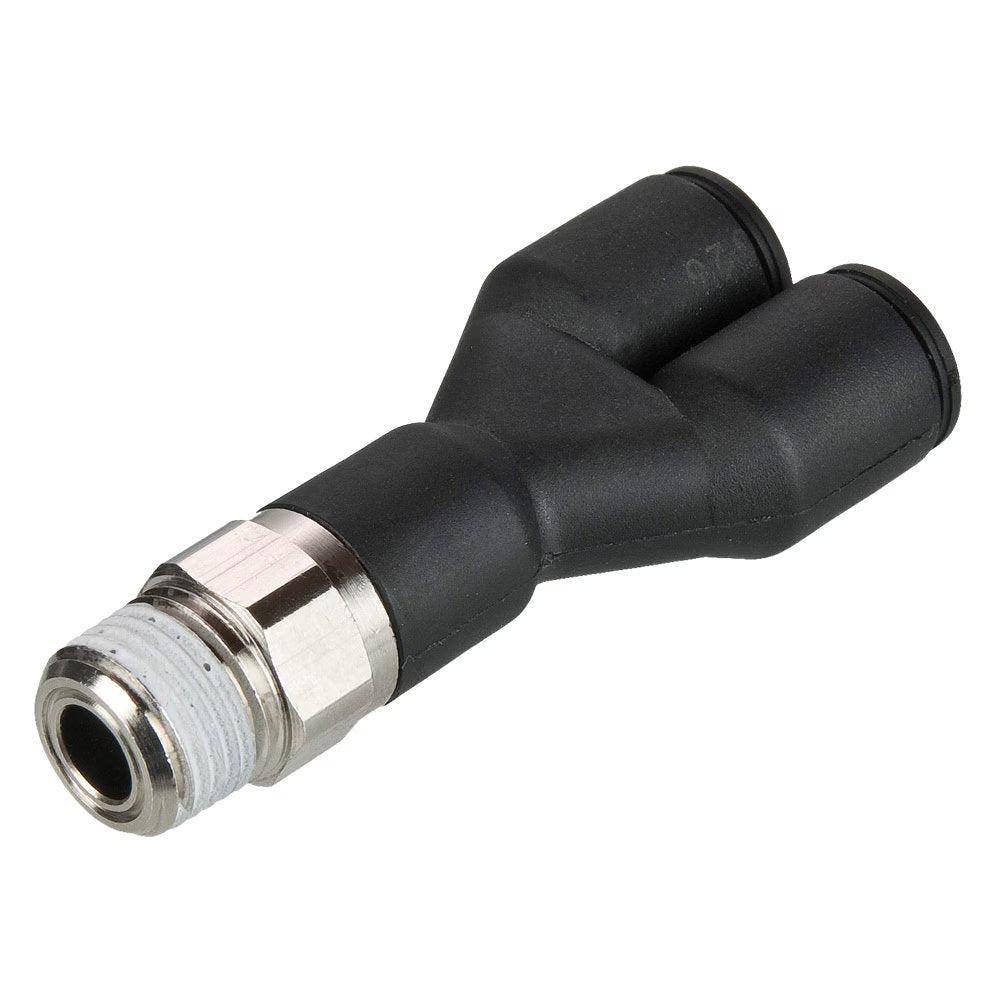

W368PLP-4M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 5/32" Connector x 1/4" Male NPT Thread | 14mm Hex | .69" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W368PLP Male Y Connector - NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $102.28 |
| 20–59 | $92.49 |
| 60+ | $81.61 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Y
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPTX | Hex (C) | H | L | N |
| W368PLP-4M-2 | 5/32" | 1/8" | 11 mm | 1.28" | .69" | .35" |
| W368PLP-4M-4 | 5/32" | 1/4" | 14 mm | 1.30" | .69" | .35" |
| W368PLP-4-2 | 1/4" | 1/8" | 11 mm | 1.61" | .87" | .45" |
| W368PLP-4-4 | 1/4" | 1/4" | 14 mm | 1.56" | .87" | .45" |
| W368PLP-6-4 | 3/8" | 1/4" | 11 mm | 2.24" | 1.30" | .67" |
| W368PLP-6-6 | 3/8" | 3/8" | 18 mm | 2.28" | 1.30" | .67" |
