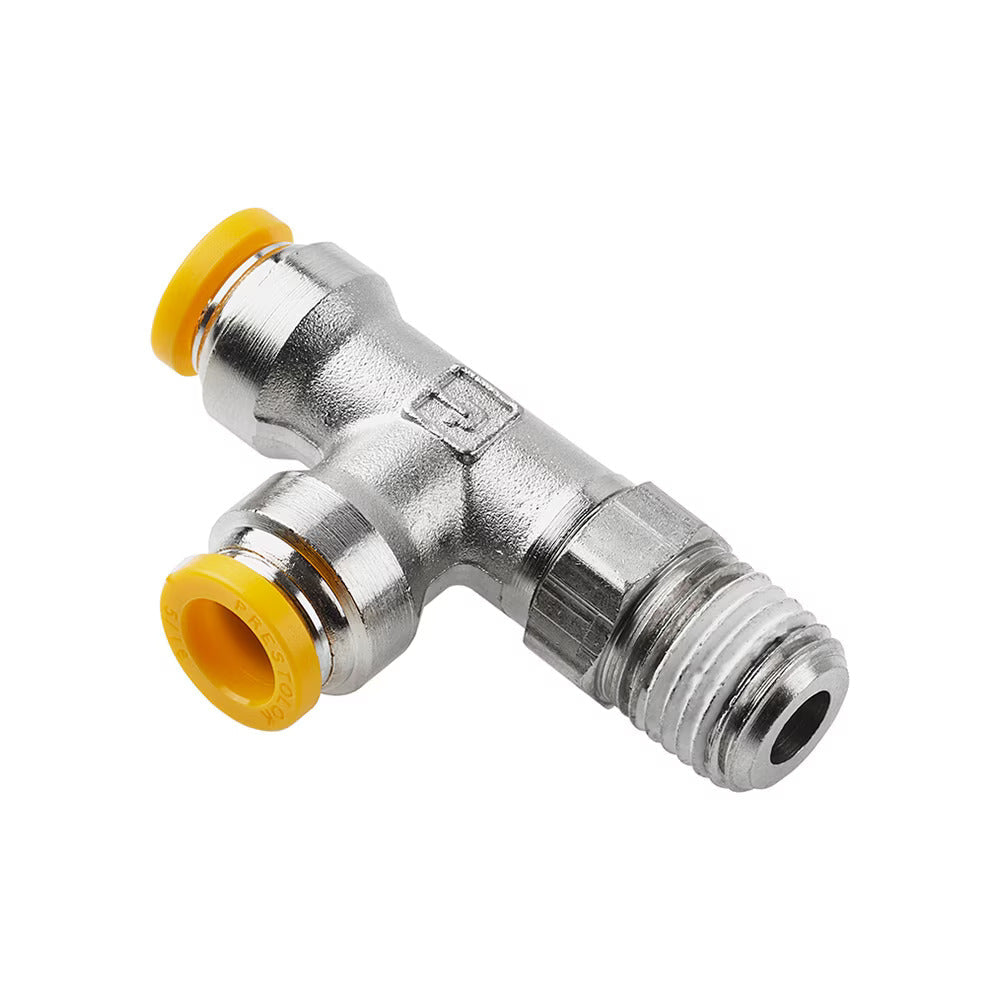

W171PLP-6M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 6mm Swivel Push-to-Connect x 6mm Swivel Push-to-Connect x 1/4" Male BSPT Thread | 9/16" Hex | Tee | Nickel-Plated Brass
by Parker Hannifin
Push-to-Connect Fittings:W171PLP Male Run Tee Swivel – BSPT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.47 |
| 40–79 | $11.28 |
| 80+ | $9.95 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPT | Hex (C) | L | N | Flow Diameter (D) |
| W171PLP-4M-2R | 4 mm | 1/8" | 7/16" | 19.05 mm | 23.95 mm | 3.17 mm |
| W171PLP-4M-4R | 4 mm | 1/4" | 9/16" | 19.05 mm | 28.60 mm | 3.17 mm |
| W171PLP-6M-2R | 6 mm | 1/8" | 7/16" | 20.90 mm | 23.92 mm | 4.77 mm |
| W171PLP-6M-4R | 6 mm | 1/4" | 9/16" | 20.90 mm | 28.49 mm | 4.77 mm |
| W171PLP-6M-6R | 6 mm | 3/8" | 11/16" | 20.90 mm | 30.78 mm | 4.77 mm |
| W171PLP-8M-2R | 8 mm | 1/8" | 9/16" | 24.20 mm | 26.16 mm | 6.35 mm |
| W171PLP-8M-4R | 8 mm | 1/4" | 9/16" | 24.20 mm | 31.75 mm | 6.35 mm |
| W171PLP-8M-6R | 8 mm | 3/8" | 11/16" | 24.20 mm | 31.75 mm | 6.35 mm |
| W171PLP-10M-4R | 10 mm | 1/4" | 9/16" | 25.52 mm | 31.75 mm | 7.13 mm |
| W171PLP-10M-6R | 10 mm | 3/8" | 11/16" | 25.52 mm | 31.75 mm | 7.13 mm |
| W171PLP-10M-8R | 10 mm | 1/2" | 7/8" | 25.52 mm | 37.84 mm | 7.13 mm |
| W171PLP-12M-4R | 12 mm | 1/4" | 11/16" | 29.15 mm | 32.77 mm | 9.52 mm |
| W171PLP-12M-6R | 12 mm | 3/8" | 11/16" | 29.15 mm | 23.95 mm | 33.52 mm |
| W171PLP-12M-8R | 12 mm | 1/2" | 7/8" | 29.15 mm | 38.86 mm | 9.52 mm |
