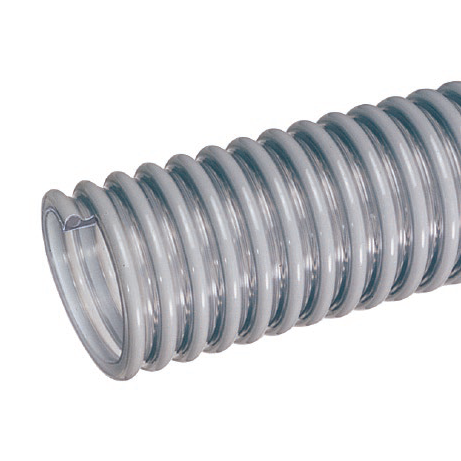

W125X100 Tigerflex by Kuriyama | W Series | Heavy Duty Liquid Suction Hose | 1-1/4" ID | PVC | 100ft Length
Kuriyama Tigerflex W™ Series Heavy Duty PVC Liquid Suction Hose
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $281.42 |
| 15–29 | $254.47 |
| 30+ | $224.54 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
50
Tubing Construction:
Specifications and Approvals:
Special Properties:
Heavy Duty PVC Suction Hose
Tigerflex® W Series
Heavy-duty PVC liquid suction hose engineered for trash pumps, dewatering, slurry handling, and demanding water transfer applications.
Cold-Flex Material
Stays flexible in sub-zero temps (4"–16")
See-the-Flow
Transparent wall for visual flow confirmation
Convoluted Cover
Outer ribs deliver superior flexibility
Full Vacuum
Rigid PVC helix holds full vacuum on 1"–4"
Specifications
at a glance| Applications | Trash pumps, construction & rental dewatering, slurry handling, fish suction, gold dredging, heavy-duty water suction, extreme cold conditions (4"–16") |
| Tube | PVC |
| Reinforcement | Rigid PVC Helix |
| Temperature Range | Sizes 1"–3": -4°F to 150°F (-20°C to +65°C) Sizes 4"–16": -40°F to 150°F (-40°C to +65°C) |
| Compliance | RoHS (10) |
Product Catalog
8 models| Part # | ID | OD | Working Pressure (68°F / 104°F) |
Vacuum Rating (68°F / 104°F) |
Bend Radius | Length | Weight |
|---|---|---|---|---|---|---|---|
| W100X100 | 1" (25.4mm) | 1.30" (33.0mm) | 55 / 35 PSI | Full / 28 in. Hg | 1" | 100 ft | 0.21 lbs/ft |
| W125X100 | 1-1/4" (31.7mm) | 1.60" (40.6mm) | 50 / 30 PSI | Full / 28 in. Hg | 2" | 100 ft | 0.28 lbs/ft |
| W150X100 | 1-1/2" (38.1mm) | 1.85" (47.0mm) | 50 / 30 PSI | Full / 28 in. Hg | 2" | 100 ft | 0.34 lbs/ft |
| W200X100 | 2" (50.8mm) | 2.40" (61.0mm) | 50 / 30 PSI | Full / 28 in. Hg | 3" | 100 ft | 0.52 lbs/ft |
| W250X100 | 2-1/2" (63.5mm) | 2.99" (75.9mm) | 45 / 25 PSI | Full / 28 in. Hg | 4" | 100 ft | 0.77 lbs/ft |
| W300X100 | 3" (76.2mm) | 3.64" (92.5mm) | 45 / 25 PSI | Full / 28 in. Hg | 6" | 100 ft | 1.18 lbs/ft |
| W400X100 | 4" (101.6mm) | 4.76" (121.0mm) | 35 / 18 PSI | Full / 28 in. Hg | 8" | 100 ft | 1.92 lbs/ft |
| W500X100 | 5" (127.0mm) | 5.75" (146.0mm) | 35 / 18 PSI | 28 / 25 in. Hg | 12" | 100 ft | 2.42 lbs/ft |
| W600X100 | 6" (152.4mm) | 7.00" (177.8mm) | 30 / 15 PSI | 28 / 25 in. Hg | 14" | 100 ft | 3.76 lbs/ft |
⚠ NOTE: Service life and actual service temperature range vary depending on operating conditions and the type of material being conveyed.
