TSPVF8-0375-062-50 Versilon™ by Saint Gobain | 1/4" ID x 3/8" OD x .062" Wall | Flexible PVDF Chemical Transfer Tubing | 50' Package Length
Saint Gobain

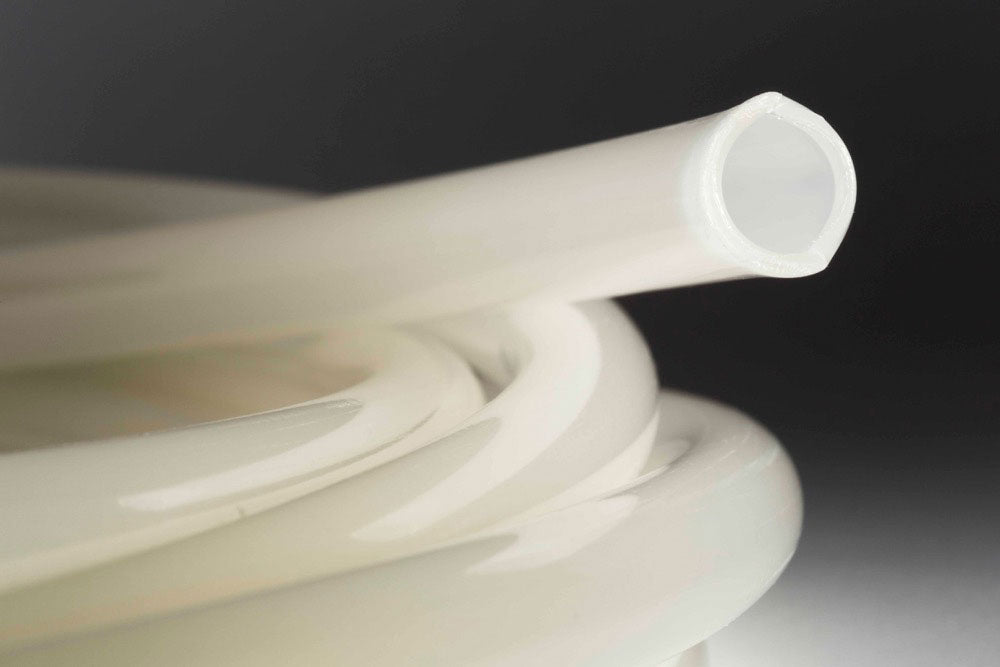

Versilon™ PVDF Chemical Transfer Tubing
Produced from Kynar® Flex resin, a co-polymer material, Versilon PVDF chemical transfer tubing offers the stable characteristics of fluoropolymer tubing. In addition, it has abrasion resistance, mechanical strength and inherent high purity.
Versilon PVDF flexible tubing also offers chemical compatibility in higher pH solutions, increased impact strength and better clarity than standard PVDF. These features make Versilon PVDF tubing ideal for use in the semi-conductor industry, pulp and paper industry, and nuclear waste processing.
Product Data:
SPECIFICATIONS
| Application: | Chemical processing, Food processing, Nuclear waste processing, Photovoltaic, Pulp and paper, Semiconductor, Water transfer and purification | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVDF |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Maximum Recommended Operating Temp: 250°F (121°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | Material compliant with 21 CFR Sec. 177.2600 (c)(4)(i), FDA |
| Literature: | Versilon™ PTFE-F High Temperature Flexible Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number 50ft Lengths |
Part Number 100ft Lengths |
Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) |
|---|---|---|---|---|
| TSPVF8-0125-031-50 | TSPVF8-0125-031.10 | 1/16" | 1/8" | 0.031" (1/32") |
| TSPVF8-0187-031-50 | TSPVF8-0187-031.10 | 1/8" | 3/16" | 0.031" (1/32") |
| TSPVF8-0250-040-50 | TSPVF8-0250-040.10 | 8/47" (.170") | 1/4" | 0.040" (1/25") |
| TSPVF8-0250-062-50 | TSPVF8-0250-062.10 | 1/8" | 1/4" | 0.062" (1/16") |
| TSPVF8-0312-062-50 | TSPVF8-0312-062.10 | 3/16" | 5/16" | 0.062" (1/16") |
| TSPVF8-0375-031-50 | TSPVF8-0375-031.10 | 5/16" | 3/8" | 0.031" (1/32") |
| TSPVF8-0375-062-50 | TSPVF8-0375-062.10 | 1/4" | 3/8" | 0.062" (1/16") |
| TSPVF8-0437-062-50 | TSPVF8-0437-062.10 | 5/16" | 7/16" | 0.062" (1/16") |
| TSPVF8-0500-062-50 | TSPVF8-0500-062.10 | 3/8" | 1/2" | 0.062" (1/16") |
| TSPVF8-0625-062-50 | TSPVF8-0625-062.10 | 1/2" | 5/8" | 0.062" (1/16") |
| TSPVF8-0750-062-50 | TSPVF8-0750-062.10 | 5/8" | 3/4" | 0.062" (1/16") |
| TSPVF8-0875-062-50 | TSPVF8-0875-062.10 | 3/4" | 7/8" | 0.062" (1/16") |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
