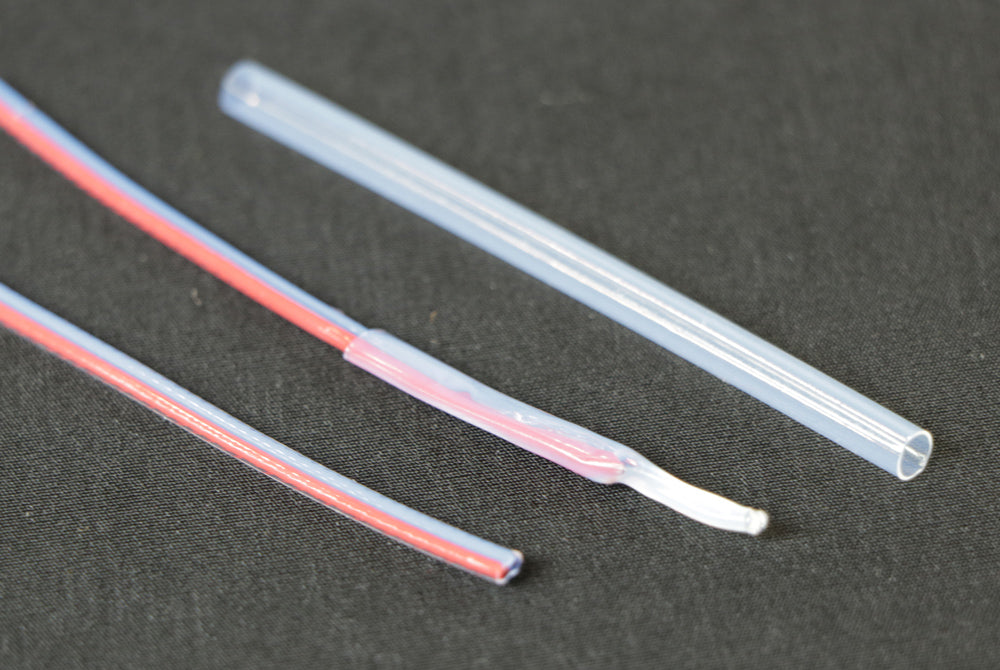

THFE4.440012 Versilon™ by Saint Gobain | 0.349" ID Recovered x 0.440" ID Expanded x .012" Wall | FEP 1.3X Heat Shrink Tubing | 4' Package Length
Minimum Order Quantity: 25 Units
Saint Gobain
Versilon™ FEP Dual Heat Shrink Tubing
Versilon™ FEP Heat Shrink Tubing is used to protect wires, cables, sensors, connectors against fluids, moisture and corrosion in aggressive environments. It is composed of an outer layer of PTFE heat shrink and an inner layer of FEP. Thus it combines the excellent chemical, mechanical and electrical properties of both PTFE and FEP.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $19.42 |
| 40–79 | $17.56 |
| 80+ | $15.50 |
Product Data:
SPECIFICATIONS
| Application: | Component encapsulation, Temperature sensor protection, Wire splicing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 100% Virgin FEP Resin |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -608-626°F (-320-330°C) to 500°F (260°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA Approved |
| Literature: | Versilon™ FEP Dual Heat Shrink Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter Expanded (in.) |
Inside Diameter Recovered (in.) |
Recovered Wall Thickness (in.) |
AWG Size (American Wire Gauge) |
Length |
|---|---|---|---|---|---|
| THFE4.045008 | 0.045" | 0.039" | 0.008" | 20 | 4ft |
| THFE4.060008 | 0.060" | 0.049" | 0.008" | 18 | 4ft |
| THFE4.115009 | 0.115" | 0.089" | 0.009" | 12 | 4ft |
| THFE4.141010 | 0.414" | 0.114" | 0.010" | 10 | 4ft |
| THFE4.158010 | 0.158" | 0.124" | 0.010" | 9 | 4ft |
| THFE4.180010 | 0.180" | 0.143" | 0.010" | 8 | 4ft |
| THFE4.290011 | 0.290" | 0.226" | 0.011" | 4 | 4ft |
| THFE4.310011 | 0.310" | 0.249" | 0.011" | 3 | 4ft |
| THFE4.365012 | 0.365" | 0.280" | 0.012" | 2 | 4ft |
| THFE4.400012 | 0.400" | 0.311" | 0.012" | 1 | 4ft |
| THFE4.440012 | 0.440" | 0.349" | 0.012" | 0 | 4ft |
| Fractional Sizes | |||||
| THFE4.500015 | 0.500" | 0.383" | 0.015" | 3/8" | 8ft |
| THFE4.580020 | 0.580" | 0.448" | 0.020" | 7/16" | 8ft |
| THFE4.666020 | 0.666" | 0.510" | 0.020" | 1/2" | 8ft |
| THFE4.830025 | 0.830" | 0.637" | 0.025" | 5/8" | 8ft |
| THFE4.100030 | 1.000" | 0.764" | 0.030" | 3/4" | 8ft |
| THFE4.117035 | 1.170" | 0.891" | 0.035" | 7/8" | 8ft |
| THFE4.133035 | 1.333" | 1.020" | 0.035" | 1" | 4ft |
| THFE4.200035 | 2.000" | 1.520" | 0.035" | 1-1/2" | 4ft |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
