FBFEPF-0312-062-50 Versilon™ by Saint Gobain | 3/16" ID x 5/16" OD x .062" Wall | FEP-F Food and Beverage Dispensing Tubing | 50' Package Length
Minimum Order Quantity: 40 Units
Saint Gobain
Versilon™ FEP-F Food and Beverage Dispensing Tubing

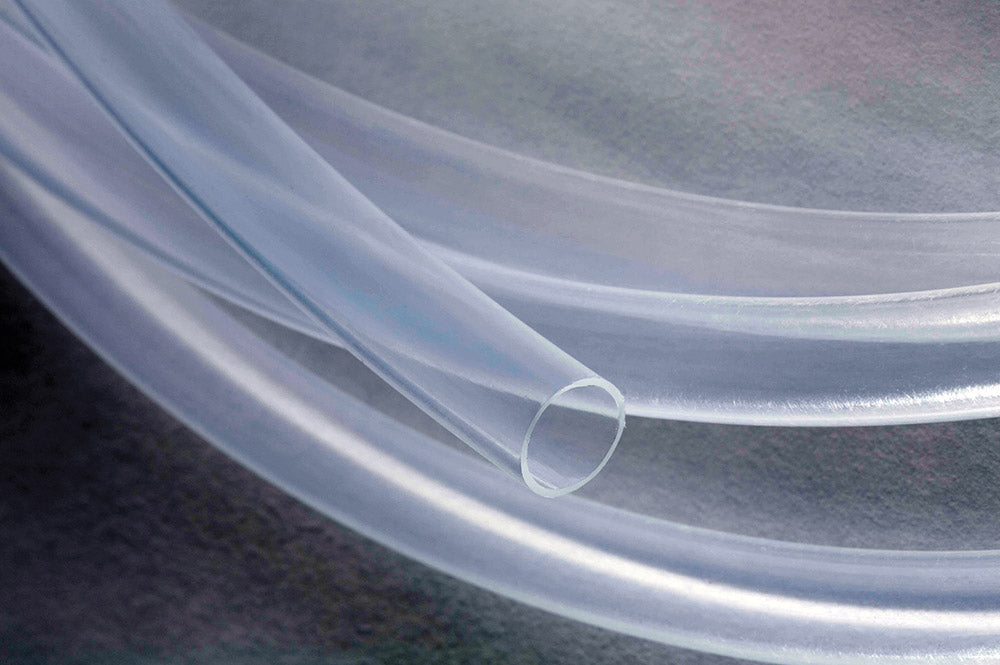

Versilon™ FEP-F is a clear high-strength tubing especially suitable for high temperature or corrosive food dispensing applications. Versilon FEP-F resists attack by acidic foods and flavoring oils which may degrade other plastic tubing types. It is also suitable for dispensing hot liquids such as coffee or tea with little risk of flavor alteration due to its low extractables and low moisture absorption compared to other tubing products. In addition, Versilon™ FEP-F resists cracking at temperatures as low as -418°F (-250°C), making it suitable use in freezers and with dry ice
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $240.54 |
| 15–29 | $217.51 |
| 30+ | $191.92 |
Product Data:
SPECIFICATIONS
| Application: | Food and Beverage Dispensing, Cleaning Chemical Dispensing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | FEP-F |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -418°F (-250°C) to 400°F (204°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | Regulation (EU) No 10/2011, FDA |
| Literature: | Versilon™ FEP-F Food and Beverage Dispensing Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI) | Length |
|---|---|---|---|---|---|---|
| FBFEPF-0062-015-50 | 1/32" | 1/16" | 0.016" | - | - | 50ft |
| FBFEPF-0125-031-50 | 1/16" | 1/8" | 0.031" (1/32") | 0.5" | 196 PSI | 50ft |
| FBFEPF-0156-031-50 | 3/32" | 5/32" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0187-031-50 | 3/16" | 1/8" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0187-062-50 | 1/16" | 3/16" | 0.062" (1/16") | - | - | 50ft |
| FBFEPF-0250-031-50 | 3/16" | 1/4" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0250-047-50 | 5/32" | 1/4" | 0.047" (3/64") | - | - | 50ft |
| FBFEPF-0250-062-50 | 1/8" | 1/4" | 0.062" (1/16") | 0.5" | 198PSI | 50ft |
| FBFEPF-0312-031-50 | 1/4" | 5/16" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0312-062-50 | 3/16" | 5/16" | 0.062" (1/16") | - | - | 50ft |
| FBFEPF-0375-031-50 | 5/16" | 3/8" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0375-062-50 | 1/4" | 3/8" | 0.062" (1/16") | 1" | 127 PSI | 50ft |
| FBFEPF-0437-031-50 | 3/8" | 7/16" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0500-031-50 | 7/16" | 1/2" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0562-031-50 | 1/2" | 9/16" | 0.031" (1/32") | - | - | 50ft |
| FBFEPF-0625-062-50 | 1/2" | 5/8" | 0.062" (1/16") | 3" | 72 PSI | 50ft |
| FBFEPF-0750-062-50 | 5/8" | 3/4" | 0.062" (1/16") | - | - | 50ft |
| FBFEPF-0875-062-50 | 3/4" | 7/8" | 0.062" (1/16") | - | - | 50ft |
| FBFEPF-1000-062-50 | 7/8" | 1" | 0.062" (1/16") | - | - | 50ft |
| FBFEPF-1125-062-50 | 1" | 1-1/8" | 0.062" (1/16") | - | - | 50ft |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
