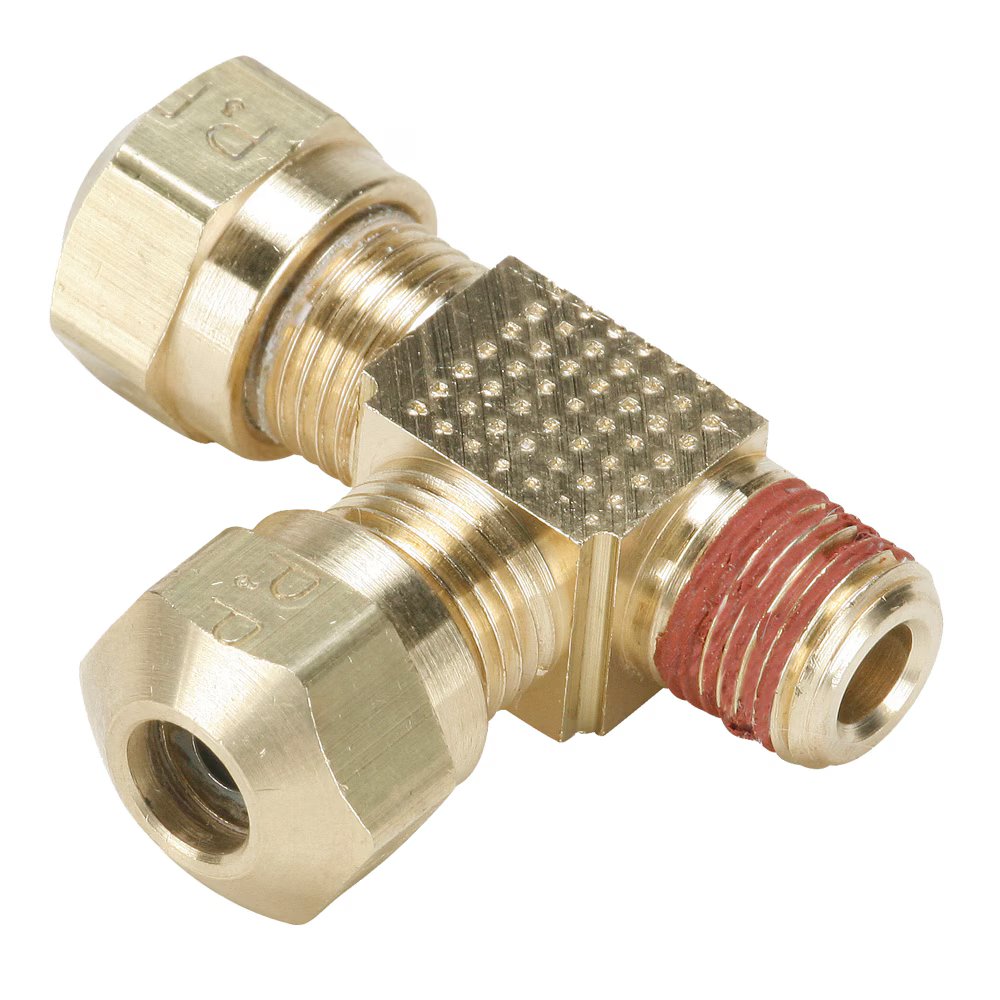

VS271NTA-4-2 by Parker | Air Brake–NTA® Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | Tee | Brass | Pack of 10
by Parker Hannifin
Air Brake–NTA® Fittings:Male Run Tee VS271NTA
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $113.05 |
| 20–59 | $102.23 |
| 60+ | $90.20 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Temperature Range: | -40° to +200° F (-40° to +93.3° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Straight Thread | L | M | N | Flow Diameter (D) |
| VS271NTA-4-2 | 1/4" | 1/8" | 7/16"-24 | .95" | .62" | .66" | .137" |
| VS271NTA-4-4 | 1/4" | 1/4" | 7/16"-24 | 1.00" | .68" | .87" | .137" |
| VS271NTA-6-4 | 3/8" | 1/4" | 17/32"-24 | 1.25" | .78" | .91" | .217" |
| VS271NTA-6-6 | 3/8" | 3/8" | 17/32"-24 | 1.30" | .84" | .91" | .217" |
| VS271NTA-8-6 | 1/2" | 3/8" | 11/16"-24 | 1.45" | .93" | .99" | .338" |
| VS271NTA-8-8 | 1/2" | 1/2" | 11/16"-20 | 1.55" | 1.03" | 1.18" | .338" |
| VS271NTA-10-8 | 5/8" | 1/2" | 13/16"-18 | 1.60" | 1.09" | 1.24" | .398" |
