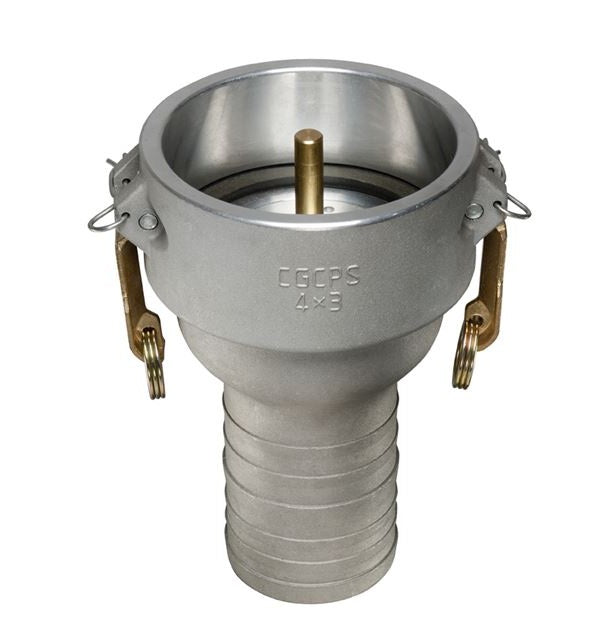

VRP-P4030 by Kuriyama | VRP-P Series | Part C | Vapor Recovery Cam & Groove Fitting | with Poppet | 4" Coupler x 3" Hose Barb | Aluminum
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made for use in petroleum markets with bottom loading applications.
- Each coupling comes with a probe for connecting with male vapor coupling.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles, which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Supplied with brass probe.
- Buna-N gasket included.
| Part Number | Coupler Size (in) |
Shank Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| VRP-P4030 | 4" | 3" | 150 PSI | B26 Grade 713 | 4.01 lbs |
Additional Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
